Corvette Z06 LS7 Engine

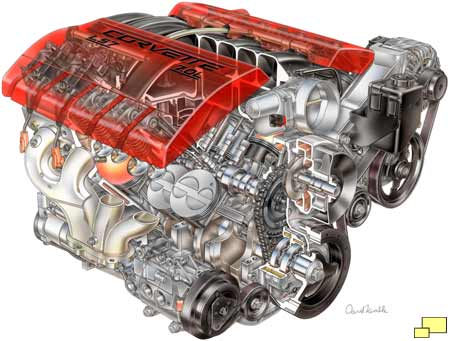

2006 Corvette Z06 LS7 Engine. David Kimble cutaway drawing.
As the photos demonstrate, the LS7 engine looks great disassembled. It is still part of the small block family, a relative of the 265 cu. in. motor introduced in the 1955 Corvette. The only thing the two motors had in common was the bore centers, (the distance between the pistons) which had been unchanged at 4.40", the OHV layout and the camshaft location. Engine output is 505 hp at 6,300 RPM with 470 lb.-ft. of torque at 4800 RPM. Engine RPM is limited to 7,000 RPM. The EPA estimated fuel economy was 16 mpg city and 26 mph on the highway. As with all previous Corvettes, the 2006 Z06 did not require buyers to pay a gas guzzler tax. Very impressive.

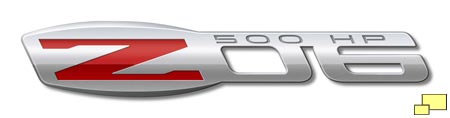

Z06 side emblem, press image
2006 Corvette Z06 engine Initially the 2006 Z06 hp was rated at 500 hp as indicated by the above press image. SAE (Society of Automotive Engineers) certified testing upped the power to 505 hp which became the official specification. Interestingly, the Z06 LS7 engine was the first to be tested under a new "SAE Certified Power" program. Certification requirements included a ISO9000/9002 certified facility and in person approval of the testing by an SAE approved party.

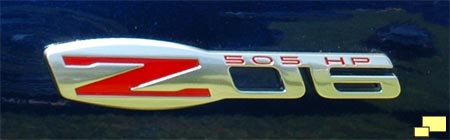

Z06 side emblem, production

2006 Corvette For Sale

2006 Chevrolet Corvette Conv
Price: $34,986 (Trades Considered)
Exterior: Monterey Red
Interior: Cashmere Leather
Miles: 9,875
Location: 1040 Seminole Blvd Largo, Fl 33770

Click Here for more info

L◉◉K! 2006 Corvette Conv ***$11.50 per day*** Expect to be impressed by this 2006 Corvette Convertible (more)

Corvette For Sale Banner

2006 Corvette Z06 Titanium connecting rod 2006 Corvette Z06 piston and connecting rod assembly 2006 Corvette Z06 connecting rod and piston assembly
Left: Titanium connecting rods weight of 480 grams (16.93 ounces) is 30% less than on the LS2. Middle and Right: Piston and connecting rod assembly. Note the valve clearance notches.

2006 Corvette Z06 Cylinder Head - Combustion Chamber with CNC Machining Corvette LS7 pushrod 2006 Corvette Z06 Intake and Exhaust Valves
Left: The piston's view of the cylinder head combustion chamber, with CNC machining. The 2.20" intake valve is on the left and the 1.61" exhaust valve on the right. Middle: LS7 pushrod. Right: Intake and exhaust valves.

Corvette LS7 engine, titanium intake valve and spring assembly Corvette LS7 engine, titanium intake valve and spring assembly Combustion chamber and valve ports
Left and Middle: Intake valve and spring assembly. Right: The piston's view of the cylinder head combustion chamber, without valves.

Corvette LS7 engine intake port and valve Corvette LS7 engine, exhaust port and valve Corvette LS7 engine, Intake manifold chamber interior
Left: port view of the intake valve; Middle: port view of the exhaust valve and Right: Intake manifold combustion chamber.
Photos courtesy GM
