1989 Corvette C4:
New Six Speed Manual Transmission

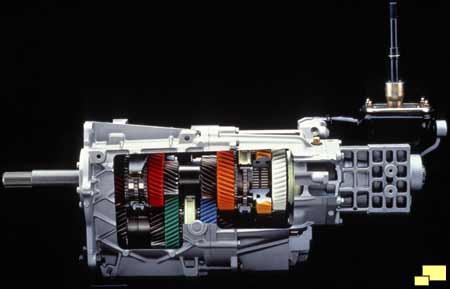

1989 Corvette ZF six speed manual transmission
The big news for 1989 was the completely new six speed manual transmission. It was designed for the Corvette by Zahnradfabrik Friedrichshafen A.G. (ZF) a German transmission builder with an excellent background for producing bulletproof transmissions for high horsepower applications. It replaced the "4+3" manual plus overdrive Doug Nash unit that first appeared in 1984 Corvettes. It was a no-cost option (the four speed automatic was standard) with improved shifting characteristics as part of the bargain.
Similar in some ways to the overdrive function of the "4+3" manual, the new transmission featured a Computer Aided Gear Selection (CAGS) system. Under certain circumstances (engine warmed up, less than 35% throttle) shifting up from first caused fourth gear to be selected. Any other circumstances (in other words, spirited driving) caused the transmission to behave like a conventional six speed. The goal was improved fuel economy and the system resulted in an EPA rating of 16 mpg city / 25 mpg highway rating - and once again the Corvette was not subjected to the gas guzzler tax.

1989 Corvette For Sale

corvette custom made
Price: $6,800
Exterior: red
Interior: black leather
Miles: 133,650
Location: homesteag, fl

Click Here for more info

1989 custom made brand new motor and brake glass top all electric red on black leather. (more)

Corvette For Sale Banner

Also new (and overshadowed by the introduction of the six speed) for 1989 was the Selective Ride System (RPO FX3; $1,695.00). It required the Performance Handling Package (RPO Z51; $575.00) which was was available only with manual transmission coupes so the price added up. It started a new trend in Corvettes: giving the driver the ability to control suspension settings. Three settings were available - Tour, Sport and Performance - controlled by a rotary switch just behind the shifter. Within each mode there were six different settings which varied depending on the speed. The settings were implemented via actuators located in the shock absorbers.

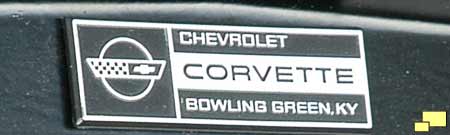

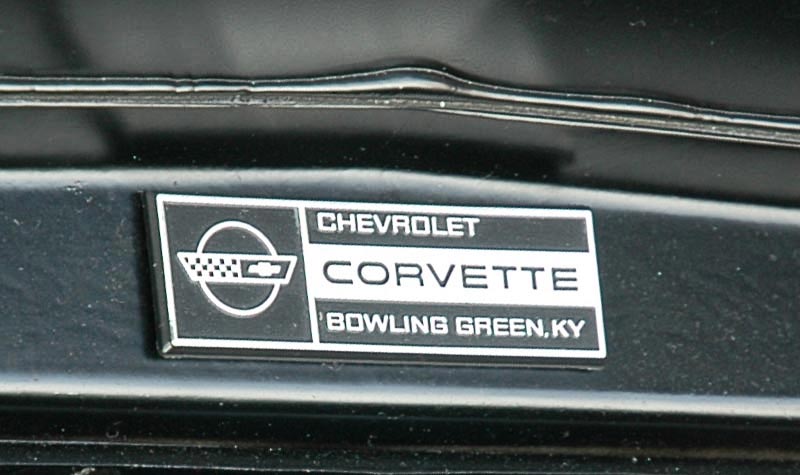

Under hood Bowling Green assembly emblem
All C4 Corvettes proudly featured a Bowling Green KY assembly plant emblem under the hood.

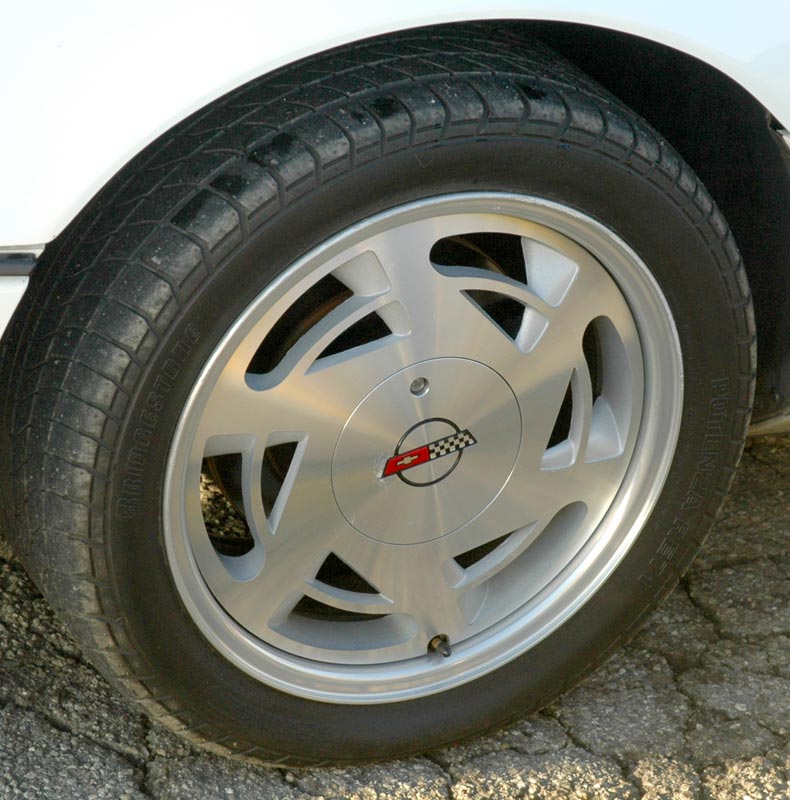

1989 Corvette 17 inch wheel Right: The 17 inch wheels optional for 1988 were promoted to standard equipment in 1989.

The 1989 Corvette continued its mission as a showcase for GM technologies with the optional Low-Tire Pressure Warning Indicator (RPO UJ6; $325.00). This ingenious system consisted of a tire pressure sensor mounted inside the wheel which, via a built in self-powered radio transmitter, relayed tire pressure data to a receiver in the dashboard. On the other side of the wheel was a weight equal to the transmitter assembly so wheel balance was maintained. A dashboard mounted light warned the driver when tire pressure was low.

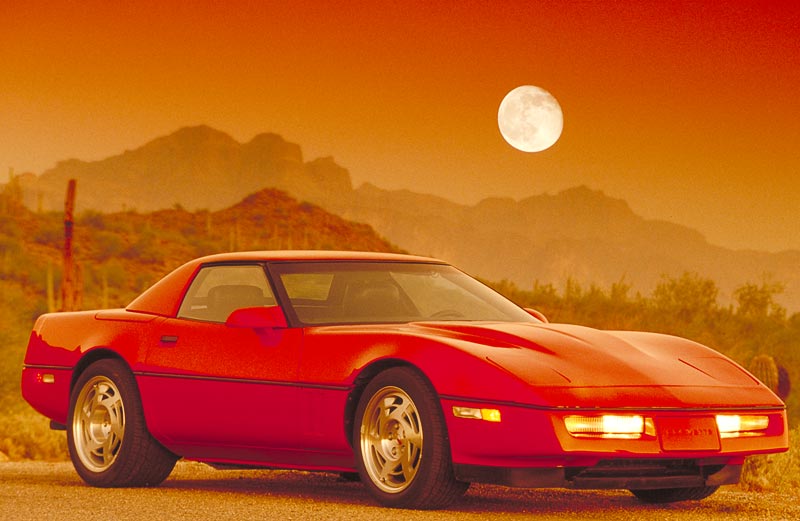

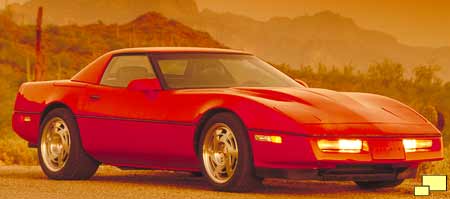

1989 Corvette with factory hardtop

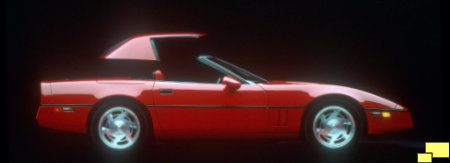

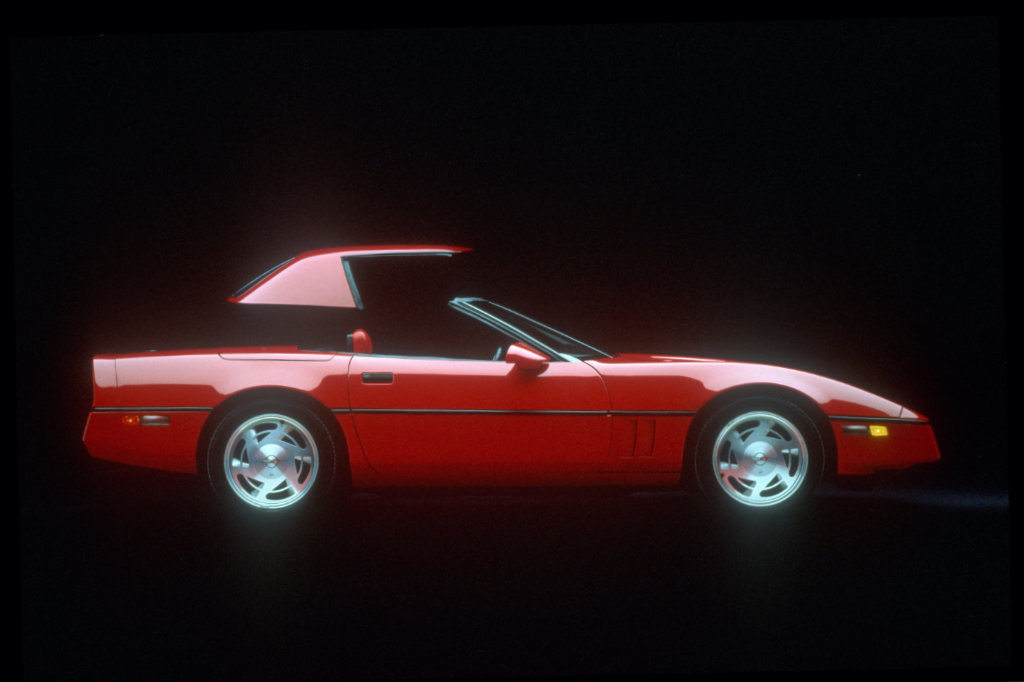

1989 Corvette Hardtop RPO CC2
A factory sourced hardtop (RPO CC2; $1,995.00) became available in 1989 and there was a lot to back up the high price. Construction consisted of a composite panel of rigid urethane surrounded by fiberglass which was molded around a structurally sound steel and aluminum cage. A cloth headliner and a heated rear window was included. For 1989 quantity was 1,573 or 5.96% of the total production.

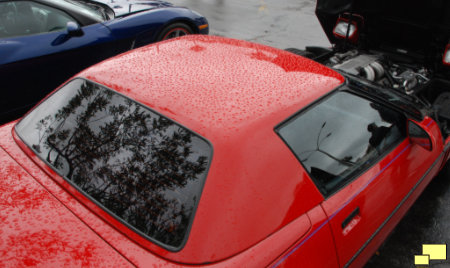

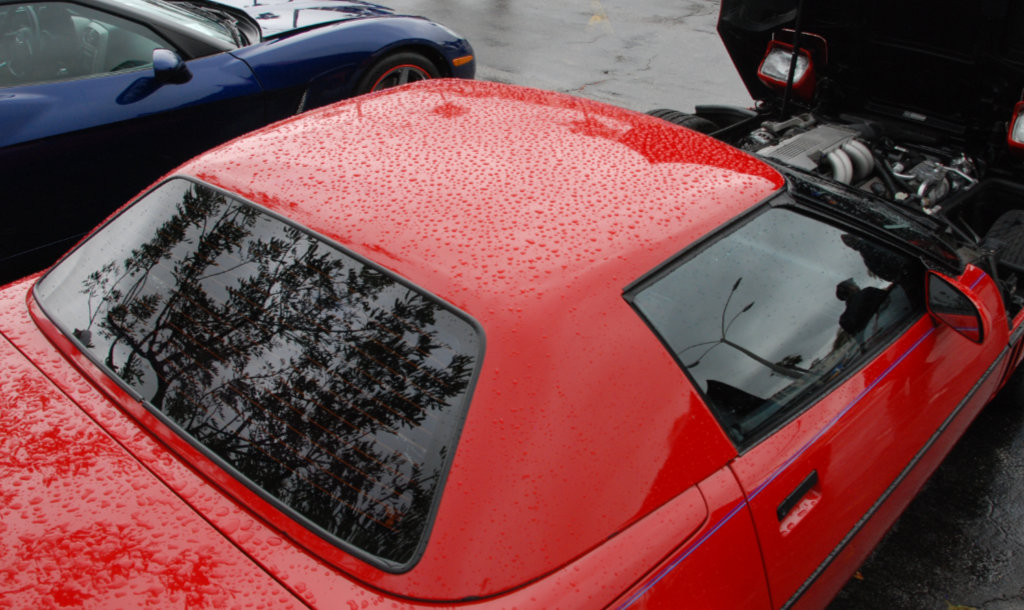

1989 Corvette Hardtop RPO CC2

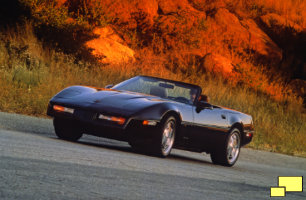

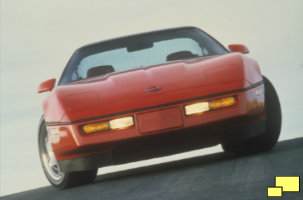

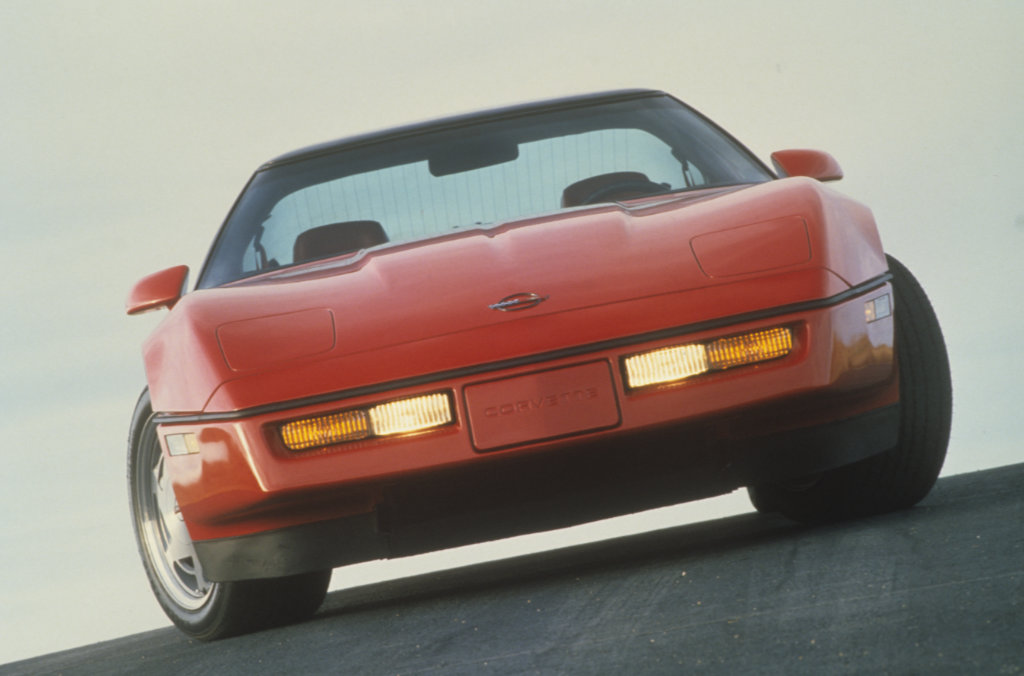

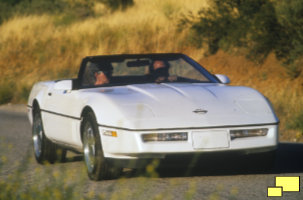

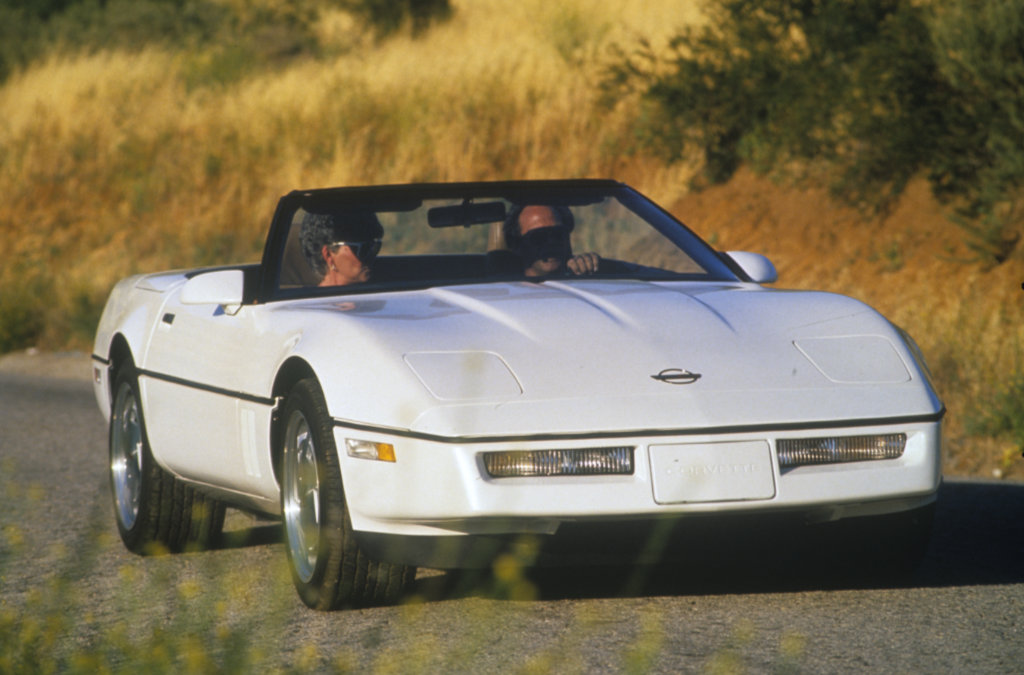

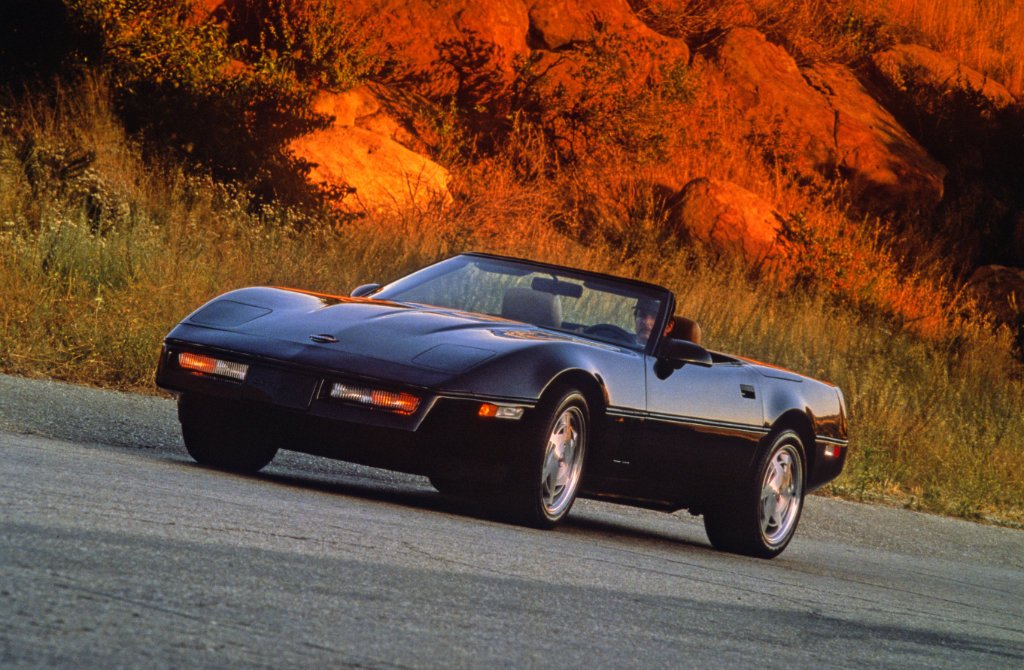

1989 Corvette Convertible 1989 Corvette Convertible

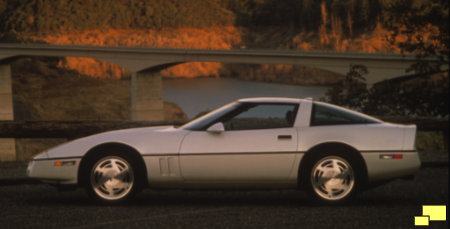

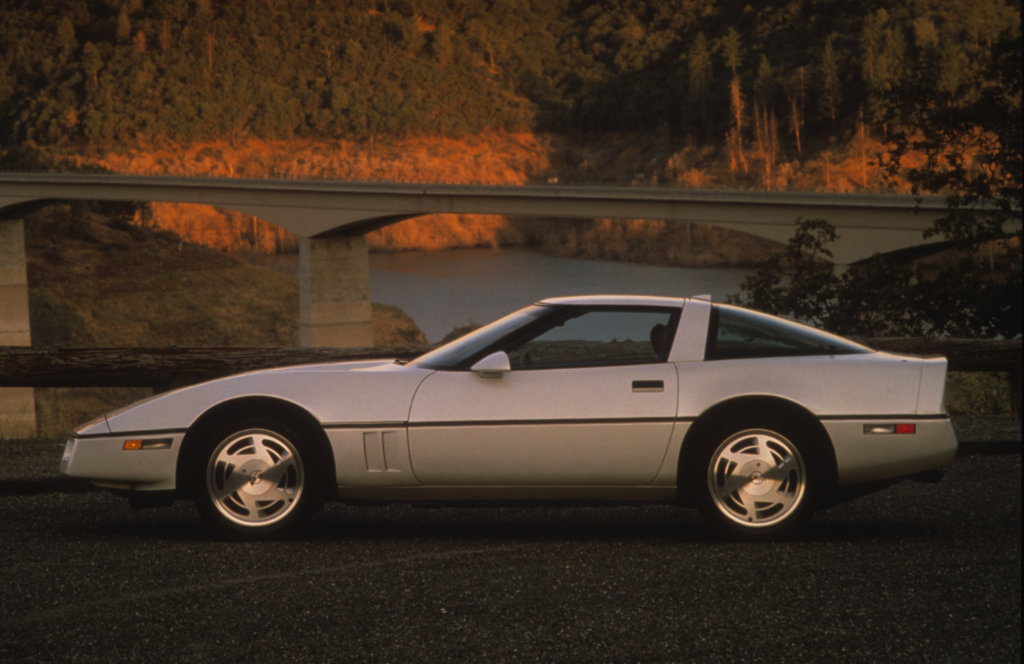

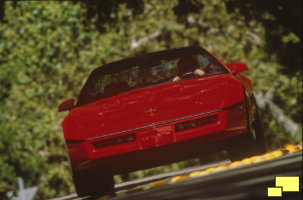

1989 Corvette 1989 Corvette Coupe
1989 Corvette Coupe

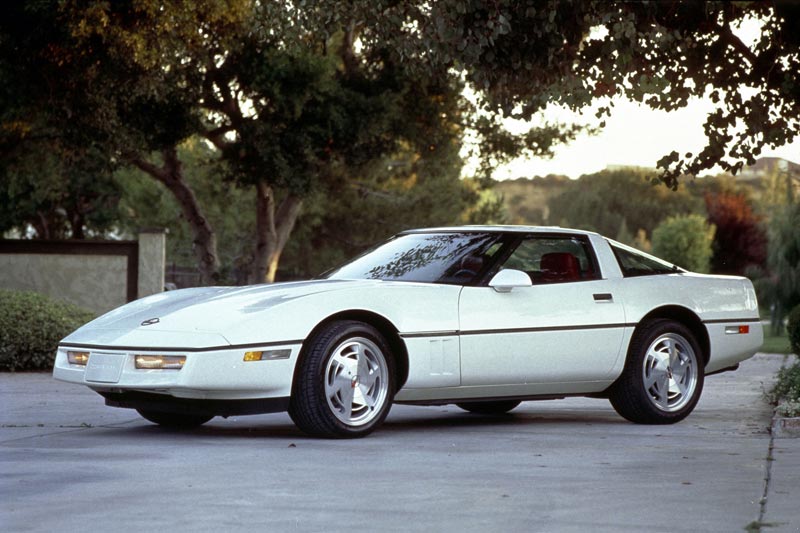

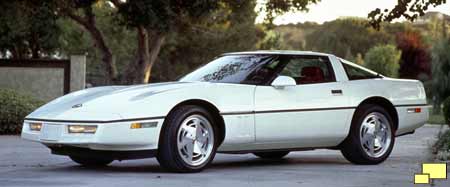

1989 Corvette Official GM photograph
1989 Corvette: Official GM Photo.

1989 Corvette Options, Prices

RPO Description Production Price
24S Removable Roof Panel, blue tint (coupe) 8,748 (33.12%) $615.00
64S Removable Roof Panel, bronze tint (coupe) 4,042 (15.30%) $615.00
AC1 Power Passenger Seat 20,578 (77.91%) $240.00
AC3 Power Driver Seat 25,606 (96.95%) $240.00
AQ9 Sports Seats, leather 1,777 (6.73%) $1,025.00
AR9 Base Seats, leather 23,364 (88.46%) $400.00
B2K Callaway Twin Turbo; installed by Callaway, sold and warranted by GM. 67 (0.25%) $25,895.00
B4P Radiator Boost Fan 20,281 (76.79%) $75.00
C2L Dual Removable Roof Panels (coupe) 5,274 (19.97%) $915.00
C68 Electronic Air Conditioning Control 24,675 (93.42%) $150.00
CC2 Auxiliary Hardtop (convertible) 1,573 (5.96%) $1,995.00
D74 Illuminated Driver Vanity Mirror 17,414 (65.93%) $58.00
FX3 Selective Ride and Handling, electronic 1,573 (5.96%) $1,695.00
G92 Performance Axle Ratio 10,211 (38.66%) $22.00
K05 Engine Block Heater 2,182 (8.26%) $20.00
KC4 Engine Oil Cooler 20,162 (76.34%) $110.00
MN6 6-Speed Manual Transmission 4,113 (15.57%) n/a
NN5 California Emission Requirements 4,501 (17.04%) $100.00
UJ6 Low Tire Pressure Warning Indicator 6,976 (26.41%) $325.00
UU8 Stereo System, Delco-Bose 24,145 (91.42%) $773.00
V01 Heavy-Duty Radiator 20,888 (79.09%) $40.00
V56 Luggage Rack (convertible) 616 (2.33%) $140.00
Z51 Performance Handling Package (coupe) 2,224 (8.42%) $575.00

Total Production: 26,412
Coupe: 16,663 (63.09%)
Convertible: 9,749 (36.91%)

Notes: Base Corvette Coupe with 350 cu. in. 245 hp engine and four speed automatic transmission: $31,545.00.
Base Corvette Convertible with 350 cu. in. 240 hp engine and four speed automatic transmission: $36,785.00.


Code Exterior Quantity Interior Soft Top
10 White 5,426 (20.54%) Blue / Black / Gray / Red / Saddle Black / Saddle / White
20 Medium Blue Metallic 1,428 (5.41%) Blue / Black Black / White
28 Dark Blue Metallic 1,931 (7.31%) Black / Saddle Black / Saddle / White
41 Black 4,855 (18.38%) Blue / Black / Gray / Red / Saddle Black / Saddle / White
68 Dark Blue Metallic 3,409 (12.91%) Black / Saddle Black / Saddle / White
81 Bright Red 7,663 (29.01%) Black / Gray / Red / Saddle Black / Saddle / White
90 Gray Metallic 225 (0.85%) Black / Gray Black / White
96 Charcoal Metallic 1,440 (5.45%) Black / Gray / Saddle Black / Saddle / White

Notes: Not all soft top / interior combinations were available.
