Does Anybody Really Know What Time It Is?

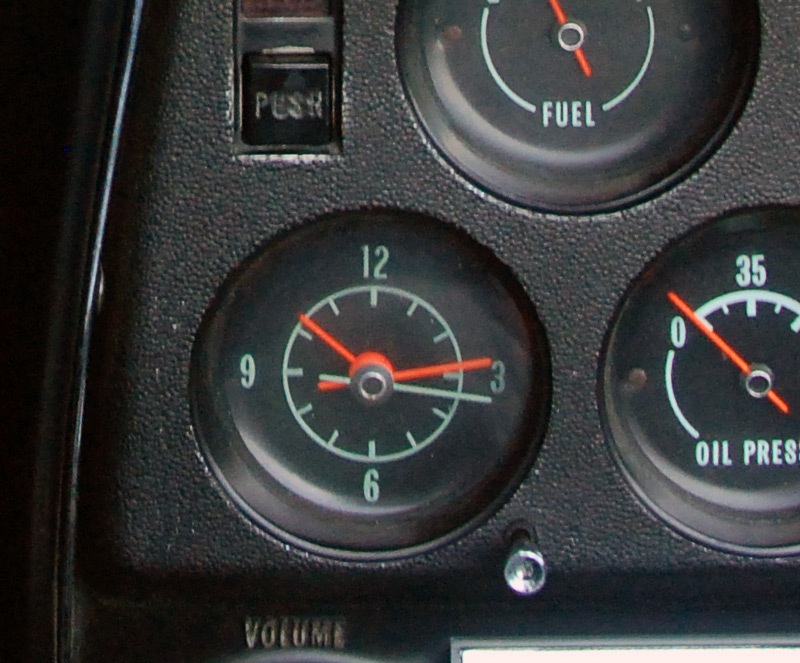

Left: As the addage goes, "even a broken clock is accurate twice a day". That may be true but not very useful since you don't know when in the day it is correct.Page 19 of the 1968 Corvette manual states "Your clock should be cleaned and oiled periodically" but there are no instructions as to how to perform the maintenance and "periodically" is not defined. Another question: did anyone actually do this?
Not so fast. Five days later I decided to treat myself and take Safari to work. Climbed in, turned the key and nothing. There was no voltage anywhere in the car; somehow the battery had completely discharged.
I put the charger on the battery to introduce some electrical life in the car. After an overnight charge, I put an ammeter in series with the battery and found that with every electrical item in the car completely off, the current draw was around three amps! That's a fair amount, about what a set of tail lights might require, so it was little wonder the battery had died. My first suspicion was that I had been sold a defective clock. Since it was one of the items on the car that still function even with the car sitting still and the key off (the others being the radio memory, alarm, interior lights) and it was new, it was suspect number one.

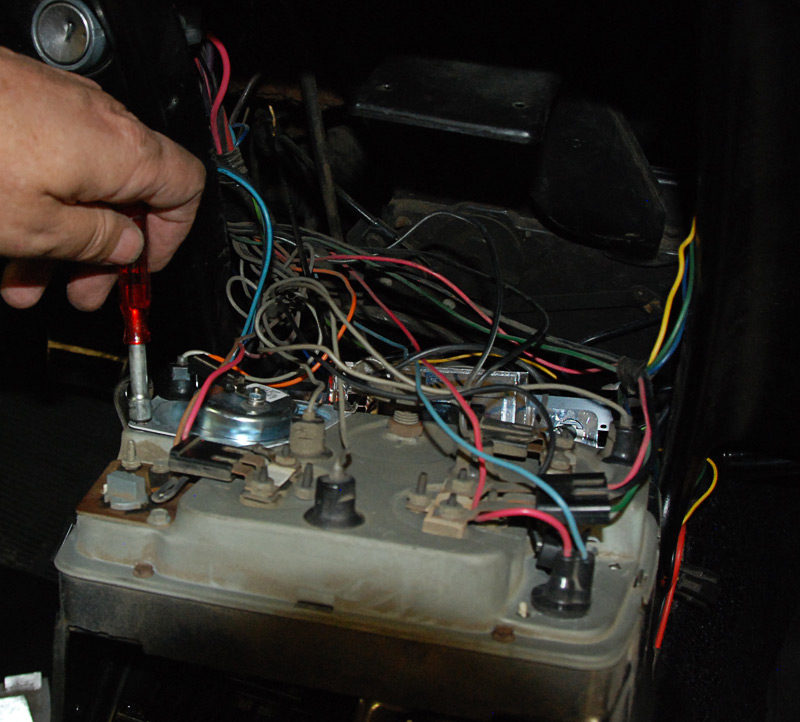

I pulled apart the instrument cluster and disconnected the new clock only to find the current draw was still @ three amps. The clock was not the problem.
Read the below thread on the ncrs.org forum to see what happened next:
Subject: 1968 Current Drain Problem
All:
What would the expected current drain with the ignition switch off, doors closed, on a '68 convertible be?
Some background: I recently replaced the clock with an aftermarket unit. The new clock worked and the car started. About five days later I went to drive it to work and the (new) battery was completely dead. The clock wasn't even working as there was no voltage in the system.
After charging the battery I pulled the negative terminal and measured the current - approximately three amps!! That's way more than I would think it should be. I immediately suspected the new clock and removed it. But I still have around three amps of current draw, even with the ignition off and the doors closed.
I am now in trying to solve the problem by the ol' process of elimination. I have disconnected the factory alarm relay and the modern digital aftermarket radio (I do NOT trust those things!) along with the battery connection to the alternator. I also disconnected the gauges in the center console.
Does my '68 convertible have interior lights that go on when the doors are opened? Sorry for the dumb question but I don't recall seeing them and I am new to the car. It's too bright of a day now for me to give it a visual test. I know the center "glove box" compartment behind the seats has one but that one I can see but I can also witness a current difference of about .5 amps when I switch if off and on, so I know that isn't the problem. I can see the current increase to around 10 amps when I turn on the parking lights, so it is not like they are somehow accidentally on.
I do have a good DMM and an electronics background in my favor. I am considering pulling fuses one by one to see if the problem cab be further isolated.
As a matter of reference, my 1990 Mazda manual specified .020 amps of what they call "dark current". I had the chance to measure it and it was .005 amps.
Any ideas? I may start pulling fuses one by one to see if I can find the culprit, but am hoping to find a solution before resorting to that. I keep thinking that this problem only occurred after I replaced the clock, so I may have messed up something in the center instrument panel area. Before that I was able to go a week or two of inactivity and be able to start the car without a problem.
May 6th, 2012, 05:54 PM #2 Jim T_____
Re: 1968 Current Drain Problem
Paul I am long time owner of 1968 convertible, unplug the center "glove box " light. Mine has been disconnected for over thirty years. Next up is the windshield wiper switch. Start the car and turn on the windshield wipers, wet the windshield if you like, and let them do at least one swipe and using the windshield wiper switch turn off the windshield wipers. Now test for a current draw?
Reason I mention the wiper switch is that if my wiper switch is " accidentally" turned on/off when the car is not running it will pull current until the car is started and the wiper switch is used to cycle the windshield wipers on/off.
There is a inline plastic connection that is accessible from the jack storage area that I use to disable the glove box light from working.
May 6th, 2012, 07:47 PM #4 Paul Pollock (54300)
Infrequent User
Join Date January 9th, 2012
Posts 5
Re: 1968 Current Drain Problem
Jim:
As my ~30 year old cubical neighbor at the day job might say: "YOU DA MAN!!!"
It was exactly as you described. Cycling the wiper motor brought it all under control.
Funny thing is, while I was working on the instrument console I noticed a bulb socket without a bulb. I didn't think much of it, figured it had been lost in the past or I had fumbled it loose. Since I had a spare I installed it. When it was all back together and I turned the key to the on position, a "WIPER O'RIDE" idiot light came on in the spot I had installed the bulb. I knew then that the problem was solved. Too bad the bulb hadn't been there all along, I could have saved myself some frustration.
Parasitic current is now around .030 amps, about what I would expect since it includes a modern digital radio (not my idea, no flames please) with it's memory requirements.
Thanks Jim for your prompt and excellent reply. Should you be in the Los Angeles area consider yourself to be due a beverage of your choice.
Now going for a celebration ride.
~paul
May 7th, 2012, 08:42 AM #5 Jim T_____
Extremely Frequent Poster
Re: 1968 Current Drain Problem
Paul good to hear that the wiper switch was the problem area. My 68's original glove box cover/lid is hard plastic (FEB built) and is not flat/straight enough any more to keep the glove box light off when the door is closed. This is why the switch was disconnected. Your convertible should have three interior lights, rotate your light switch counter-clock-wise and this action should illuminate a light in the cargo area near the drivers side spring/hinge that supports the deck lid. The other two lights are also exposed light bulbs in holders for the drivers and passengers foot well. The switches in the front of each door opening controls the illumination of interior lights when the light switch is not used for this illumination. Our 68 does not have the "Wiper O'Ride" light. If the wiper electrical switch mounted at the bottom of the steering column that stops the wipers over the windshield so the wipers can be cleaned or changed should always be in the off position unless it is being used for wiper maintenance in stopping the wiper action.
May 7th, 2012, 09:21 AM #6 Paul Pollock (54300)
Infrequent User
Re: 1968 Current Drain Problem
My '68 is a late July build. It still has the glove box light functional but I'll be aware that the switch can go awry. I now see the interior lights but they do not work, something I'll have to look into. In my case the wiper switch near the steering column is the only way I can get the wipers to function - the switch at the top of the center instrument cluster does not work. It's always something with cars of this nature, is that part of their charm?
Thanks again for your excellent help.
Regards,
Paul Pollock
WebCars! Webmaster
http://web-cars.com
There is a moral to this story. Be proactive and join your local Corvette club. If you have (or even just appreciate) C3 and earlier Corvettes, then the NCRS (National Corvette Restorers Society) is highly recommended. Classic Corvettes may not be that difficult to own, but they do have their challenges. Organizations such as the NCRS can be an excellent resource for whatever issues that involve Corvette ownership. This is a classic example; only 21 minutes after my posting an excellent response was available. It doesn't get any better than that.
Another recommendation: Support your local Corvette club! I am a member of the Vintage Corvettes of Southern California club. In addition to the fellowship of like minded Corvette people, many excellent resources in the form of parts sources, specialist contacts and other information that typically gets passed between owner / enthusiasts are available.
