2011 Corvette Specs
Body Specs |
|||||
|
Wheelbase - Coupe, Convertible,
Z06, ZR1, Grand Sport: |
105.7 inches / 2,685 mm | ||||
| Length - Coupe, Convertible: | 174.60 inches / 4,435 mm | ||||
| Length - Z06, Grand Sport: | 175.60 inches / 4,460 mm | ||||
| Length - ZR1: | 176.20 inches / 4,476 mm | ||||
| Width, not including mirrors - Coupe, Convertible: | 72.60 inches / 1,844 mm | ||||
| Width, not including mirrors - Z06, ZR1, Grand Sport: | 75.90 inches / 1,928 mm | ||||
| Height - Coupe, Convertible, Z06, ZR1, Grand Sport: | 49.00 inches / 1,245 mm | ||||
| Front Track: | 62.10 inches / 1,677mm | ||||
| Rear Track: | 60.70 inches / 1,542 mm | ||||
| Min. Ground Clearance: | 3.7 inches | ||||
| Head Room, Coupe, Z06, ZR1, Grand Sport: | 38 inches / 962.0 mm | ||||
| Shoulder Room: | 55 inches / 1,397 mm | ||||
| Hip Room: | 54 inches / 1,371 mm | ||||
| Leg Room: | 43 inches / 1,092 mm | ||||
| Cargo Capacity: |
22 Cubic Feet / 634 Liters (Coupe, Z06)
11 Cubic Feet / 295 Liters (Convertible, top up) 5 Cubic Feet / 144 Liters (Convertible, top down) |
||||
| Tire Size: |
P245/40ZR-18 (Front)
P285/35ZR-19 (Rear) (Goodyear Eagle F1 GS, Extended Mobility) |
||||
| Tire Size, Z51 Sport Package: |
P245/40ZR-18 (Front)
P285/35ZR-19 (Rear) |
||||
| Tire Size, Z06, Grand Sport: |
P275/35ZR-18 (Front)
P325/30ZR-19 (Rear) |
||||
| Tire Size, ZR1: |
P285/30ZR-19 (Front)
P335/25ZR-20 (Rear) (Michelin Pilot Sport 2) |
||||
| Wheel Size - Coupe, Convertible: |
18 inch x 8.5 inch (Front)
19 inch x 10 inch (Rear) |
||||
| Wheel Size - Z06, Grand Sport: |
18 inch x 9.5 inch (Front)
19 inch x 12 inch (Rear) |
||||
| Wheel Type: | Cast Aluminum, Front and Rear | ||||
| Recommended Tire Inflation: | 30 PSI Front / Rear | ||||
| Manual Six Speed Transmission: |
1st Gear 2.66:1
2nd Gear 1.78:1 3rd Gear 1.30:1 4th Gear 1.00:1 5th Gear .74:1 6th Gear .50:1 Reverse Gear 2.90:1 Final Drive Ration 3.42 |
||||
| Tremec T56 Manual Six Speed Transmission - Z51 Sport Package: |
1st Gear 2.97:1
2nd Gear 2.07:1 3rd Gear 1.43:1 4th Gear 1.00:1 5th Gear .71:1 6th Gear .57:1 Reverse Gear 3.28:1 Final Drive Ration 3.42 |
||||
| Hydra-Matic 2006 6L80 (MYC) Six Speed: |
1st Gear 4.03:1
2nd Gear 2.36:1 3rd Gear 1.53:1 4th Gear 1.15:1 5th Gear 0.85:1 6th Gear 0.67:1 Reverse Gear 3.06:1 Final Drive Ration 2.56 |
||||
| Standard Fuel Tank Capacity: | 18.0 Gallons / 68.0 Liters | ||||
| Battery, Cold Cranking Amps: | 590 | ||||
| Battery Replacement Model Number: | 86-3YR | ||||
| EPA Fuel Economy: |
Manual Transmission (Coupe, Convertible)
16 MPG (City) / 26 MPG (Highway) / 19 MPG (Combined) Automatic Transmission (Coupe, Convertible) 15 MPG (City) / 24 MPG (Highway) / 18 MPG (Combined) Manual Transmission (Z06) 15 MPG (City) / 24 MPG (Highway) / 18 MPG (Combined) Manual Transmission (ZR1) 14 MPG (City) / 20 MPG (Highway) / 16 MPG (Combined) |
||||
| Maximum Cruising Range - Coupe, Convertible: |
534.8 Miles (Manual Transmission)
477.5 Miles (Automatic Transmission) |
||||
| Weight: |
3,246 lbs / 1,473 kg (Convertible)
3,217 lbs / 1,459 kg (Coupe) 3,162 lbs / 1,434 kg (Z06) 3,350 lbs / 1,519 kg (ZR1) |
||||
| Weight Distribution: | 51% Front, 49% Rear | ||||
|
Passenger Compartment Air Filter Element:
(Coupe, Convertible, Z06) |
10345066 | ||||
|
|
| Designation: |
LS3 (Coupe, Convertible)
LS7 (Z06) LS9 (ZR1) |
| Type: | 90° V8, Pushrod, OHV (overhead Valve) |
| Displacement - Coupe, Convertible, ZR1: | 6.2 liters / 376 cubic inches (LS3) |
| Displacement - Z06: | 7.0 liters / 427 cubic inches (LS7) |
| Bore / Stroke - Coupe, Convertible: | 4.06 inches (101.62 mm) / 3.62 inches (92.0 mm) |
| Bore / Stroke - Z06: | 4.125 inches (104.8 mm) / 4.00 inches (101.6 mm) |
| Horsepower: |
430 hp @ 5,900 RPM (Coupe, Convertible LS3)
436 hp @ 5,900 RPM (Coupe, Convertible LS3 with optional exhaust) 505 hp @ 6,300 RPM (Z06 LS7) 638 hp @ 6,500 RPM (ZR1 LS9) |
| Torque: |
424 lbs. - ft. @ 4,600 RPM (Coupe, Convertible LS3 with standard exhaust)
428 lbs. - ft. @ 4,600 RPM (Coupe, Convertible LS3 with optional exhaust) 470 lbs. - ft. @ 4,800 RPM (Z06 LS7) 604 lbs. - ft. @ 3,800 RPM (ZR1 LS9) |
| Fuel Induction System: | Sequential Fuel Injection |
| Fuel Requirement - Coupe, Convertible: | Premium Recommended |
| Fuel Requirement - Z06, ZR1: | Premium Required |
| Coupe, Convertible, ZR1 Redline (RPM): | 6,500 |
| Z06 Redline (RPM): | 7,000 |
| LS3 Compression Ratio - Coupe, Convertible, Grand Sport: | 10.7:1 |
| LS9 Supercharger Pulley Ratio: | 2.3:1 |
| LS9 Maximum Boost: | 10.5 PSI |
| Compression Ratio - Z06: | 11.0:1 |
| Compression Ratio - ZR1: | 9.1:1 |
| Alternator: | 50 Amps (idle), 120 Amps Maximum |
| Cylinder Head Material: | Cast Aluminum |
| Exhaust Manifolds: | Stainless Steel |
| Main Bearing Caps: | Forged Steel |
| Crankshaft: | Forged Steel |
| LS9 Camshaft: | Hollow Steel; 0.555-in (14.1 mm) lift |
| LS9 Connecting rods: | Forged Titanium |
| LS9 Intake valves: | Titanium |
| LS9 Exhaust valves: | Hollow Steel |
| Supercharger: | R2300, four-lobe "Roots" type (2.3L) |
| Valve lifters: | Hydraulic Roller |
| Cylinder Block Material: | Cast Aluminum |
| Engine Oil Capacity - Coupe, Convertible: |
5.5 Quarts, with filter
5.0 Quarts, without filter |
| Engine Oil Capacity - Z06: |
8.0 Quarts, with filter
7.5 Quarts, without filter |
| Engine Oil Capacity - ZR1: | 12.5 Quarts, with filter |
| Recommended Oil: | 5W/30 Mobil 1 Synthetic or Equivalent |
| Recommended Oil Change Interval: | 15,000 miles or One Year, under normal use |
| Engine Oil Filter - Coupe, Convertible: | AC Delco Tyoe PF46 |
| Engine Oil Filter - Z06: | AC Delco Tyoe PF48 |
| Radiator Core Material: | Aluminum |
|
|
| Spark Plug Model - Coupe, Convertible: | AC P/N 41-985; GM Part No. 12571164 |
| Spark Plug Model - Z06: | AC P/N 41-104; GM Part No. 12571165 |
| Spark Plug Thread: | 14.0 mm |
| Spark Plug Tightening Torque: | 11 lb. ft / 15 N-m |
| Spark Plug Gap: | 1.0 mm (0.040 inch) |
| Spark Plug Wire Resistance: | 188 - 312 Ω |
|
|
| 0 - 60 MPH: | 3.4 seconds |
| 0 - 100: | 7.0 seconds |
| 0 - 1/4 mile: | 11.3 seconds (131 MPH) |
|
|
| Structure / Frame: | Integral Perimeter Frame with Center Backbone / All Welded Steel Body |
| Suspension - Front: | Independent SLA (Sort Long Arm) double wishbone cast aluminum upper and lower control arms, transverse mounted composite leaf spring, monotube shock absorber. |
| Suspension - Rear: | Independent SLA (Sort Long Arm) double wishbone cast aluminum upper and lower control arms, transverse mounted composite leaf spring, monotube shock absorber. |
| Steering: | Speed sensitive, magnetic power assisted rack and pinion |
| Steering Ratio: | 16.1:1 |
| Steering Turns, Lock to Lock: | 2.66 |
| Turning Circle, Curb to Curb: | 12.0 M / 39.4 ft. |
Brake Specs |
|
| Type: | Power Assisted, Four Wheel Vented Disc with Four Wheel ABS |
| Rotor, Front: |
Outer Working Diameter: (325 mm.) 12.8 inches
Thickness: (32 mm.) 1.26 inches |
| Rotor, Rear: |
Outer Working Diameter: (305 mm.) 12.0 inches
Thickness: (26 mm.) 1.0 inches |
| Rotor, Front - Z51 Performance Package: |
Diameter: (340 mm.) 13.4 inches
Thickness: (32 mm.) 1.26 inches |
| Rotor, Rear - Z51 Performance Package: |
Diameter: (330 mm.) 13.0 inches
Thickness: (26 mm.) 1.0 inches |
| Rotor, Front - Z06: |
Diameter: (355 mm.) 14.0 inches
Thickness: (32 mm.) 1.3 inches |
| Rotor, Rear - Z06: |
Diameter: (340 mm.) 13.4 inches
Thickness: (26 mm.) 1.0 inches |
| Rotor, Front - ZR1: | Diameter: 15.5 inches |
| Rotor, Rear - ZR1: | Diameter: 15.0 inches |
2011 Corvette Options
| RPO | Description | Production | Price |
| 28U | Inferno Orange Exterior Paint | 790 (5.81%) | $300.00 |
| 2LT | Equipment Group - Convertible | 251 (1.85%) | $3,190.00 |
| 2LT | Equipment Group - Coupe | 1,060 (7.80%) | $1,195.00 |
| 2LZ | Equipment Group - Z06 | 191 (1.40%) | $2,665.00 |
| 36S | Custom Stitch, Yellow | 18 (0.13%) | $395.00 |
| 37S | Custom Stitch, Blue | 204 (1.50%) | $395.00 |
| 38S | Custom Stitch, Red | 45 (0.33%) | $395.00 |
| 3LT | Equipment Group - Coupe | 4,351 (32.00%) | $4,205.00 |
| 3LT | Equipment Group - Convertible | 2,491 (18.32%) | $6,200.00 |
| 3LZ | Equipment Group - Z06 | 523 (3.85%) | $7,170.00 |
| 3ZR | Equipment Group - ZR1 | 666 (4.90%) | $10,000.00 |
| 45U | Velocity Yellow Exterior Paint | 867 (6.38%) | $880.00 |
| 4LT | Equipment Group - Convertible | 513 (3.77%) | $9,700.00 |
| 4LT | Equipment Group - Coupe | 385 (2.83%) | $7,705.00 |
| 85U | Jetstream Blue Exterior Paint | 581 (4.27%) | $850.00 |
| 89U | Crystal Red Exterior Paint | 1,419 (10.44%) | $850.00 |
| C2L | Dual Removeable Roof Panels | 1,116 (8.21%) | $1,400.00 |
| CC3 | Removeable Roof Panel, Transparent | 1,509 (11.10%) | $750.00 |
| CFZ | Carbon Fiber Package - Z06 | 535 (3.93%) | $3,995.00 |
| D30 | Non Recommended Color / Trim / Top Combination | 58 (0.43%) | $590.00 |
| ER1 | Battery Saver | 1,487 (10.94%) | $100.00 |
| F55 | Magnetic Selective Ride Control | 3,892 (28.63%) | $1,995.00 |
| GLB | Supersonic Blue Exterior Paint | 1,417 (10.42%) | $300.00 |
| H33 | Headlight Color - Gray | 294 (2.16%) | $590.00 |
| H34 | Headlight Color - Silver | 146 (1.07%) | $590.00 |
| H35 | Headlight Color - Black | 402 (2.96%) | $590.00 |
| J55 | Cross Drilled Brake Rotors | 815 (5.99%) | $500.00 |
| MX0 | Six Speed Automatic Transmission | 8,516 (62.64%) | $1,250.00 |
| NPP | Dual Mode Exhaust System | 7,365 (54.17%) | $1,195.00 |
| OB1 | Crossed Flag Headrest Emboidery | 1,837 (13.51%) | $300.00 |
| PBC | Engine Plant Build Experince | 16 (0.12%) | $5,800.00 |
| PYD | Competition Gray Aluminum Wheels (Grand Sport) | 855 (6.29%) | $395.00 |
| PYE | Chrome Aluminum Wheels (Grand Sport) | 6,036 (44.40%) | $1,995.00 |
| Q44 | Competition Gray Aluminum Wheels (Z06) | 76 (0.56%) | $395.00 |
| Q6B | Chrome 20 Spoke Aluminum Wheels (ZR1) | 649 (4.77%) | $2,000.00 |
| Q6J | Competition Gray Aluminum Wheels (ZR1) | 390 (2.87%) | $395.00 |
| Q8A | Spider Chrome Aluminum Wheels (Z06) | 217 (1.60%) | $1,995.00 |
| QX1 | Competition Gray Aluminum Wheels (Coupe, Convertible) | 156 (1.15%) | $395.00 |
| QX3 | Chrome Aluminum Wheels | 2,113 (15.54%) | $1,850.00 |
| R8C | Museum Delivery | 271 (1.99%) | $490.00 |
| R8E | Gas Guzzler Tax (ZR1) | 698 (5.13%) | $1,300.00 |
| RQ1 | Machine Faced Aluminum Wheels | 277 (2.04%) | $895.00 |
| U3U | AM, FM, CD Navigation (Bose) | 6,915 (50.86%) | $1,795.00 |
| US9 | AM, FM Stereo Six Disc CD | 1,503 (11.05%) | $395.00 |
| VK3 | Front License Plate Bracket | 8,362 (61.50%) | $15.00 |
| Z07 | Z06 Ultimate Performance Package | 540 (3.97%) | $9,495.00 |
| Z15 | Grand Sport Heritage Package | 2,059 (15.14%) | $1,195.00 |
|
Total Production:
13,596
Notes: Base Corvette Coupe with 6.2L 376 cu. in. 430 hp engine and six speed manual transmission: $49,900.00. |
|||
2011 Packages |
||||
| RPO | Description | Contains | Production | Price |
| 2LT |
Equipment Group Convertible |
Includes side impact air bags, bluetooth, sports seats, six way power passenger seat, cargo net, power top and luggage shade | 251 (1.85%) | $3,190 |
| 2LZ |
Z06 Preferred Equipent Group |
Includes Bose seven speaker audio, bluetooth, cargo net and luggage shade, memory package, power steering column and homelink | 191 (1.40%) | $1,665 |
| 3LT |
Preferred Equipment Group Coupe |
Includes Bose seven speaker audio, bluetooth, cargo net and luggage shade, memory package, power steering column and homelink | 4,351 (32.00%) | $4,205 |
| 3LT |
Preferred Equipment Group Convertible |
Includes Bose seven speaker audio, bluetooth, cargo net and luggage shade, memory package, power steering column and homelink | 2,491 (18.32%) | $6,200 |
| 3LZ |
Preferred Equipment Group Z06 |
Includes 2LT items + power passenger seat, sports seats and leather wrapped interior | 523 (3.85%) | $7,170 |
| 3LZ |
Equipment Group Z06 Carbon Limited Edition |
Includes power passenger seat, sports seats and leather wrapped interior | n/a | $7,170 |
| 3ZR |
Preferred Equipment Group ZR1 |
Includes 2LZ items + power-adjustable, leather-trimmed sport seats (embroidered with the ZR1 logo); Bose nine speaker audio system; navigation; custom leather-wrapped interior | 666 (4.90%) | $10,000 |
| 4LT |
Equipment Group Coupe |
Includes 2LT and 3LT items + leather wrapped interior | 385 (2.83%) | $7,705 |
| 4LT |
Equipment Group Convertible |
Includes 2LT and 3LT items + leather wrapped interior | 513 (3.77%) | $9,700 |
Colors
| Code | Exterior | Quantity | Interior | Soft Top | |
| 10 | Arctic White | 1,133 (8.33%) | |||
| 17 | Blade Silver | 2,891 (21.26%) | |||
| 28 | Inferno Orange | 790 (5.81%) | |||
| 41 | Black | 2,891 (21.26%) | |||

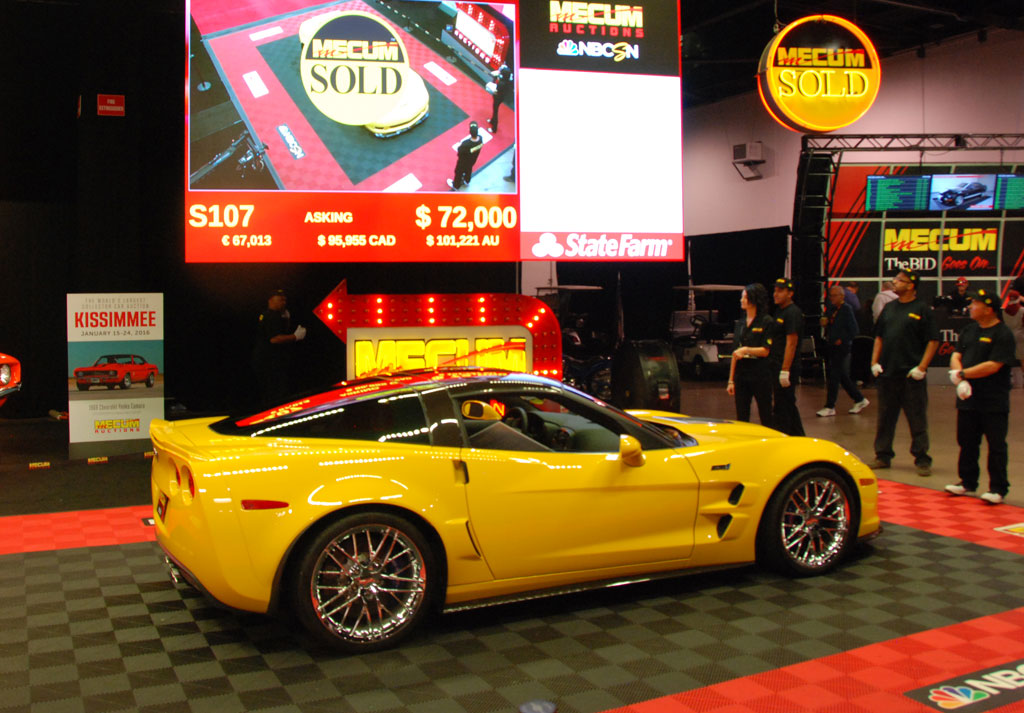

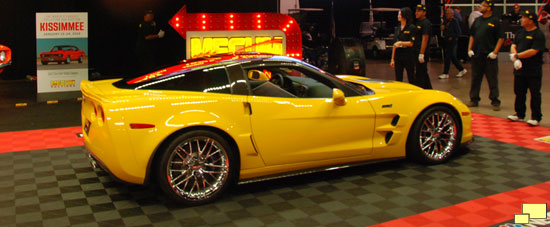

| 45 | Velocity Yellow | 867 (6.38%) | |||
| 57 | Cyber Gray | 1,197 (8.80%) | |||
| 70 | Torch Red | 2,264 (16.65%) | |||
| 85 | Jetstream Blue | 89 (0.65%) | |||
| 89 | Crystal Red | 1,419 (10.44%) | |||
Introducing the Vette Spotter app for the iPhone.
The Vette Spotter app can identify the year of any Corvette.
All years and generations are covered, from 1953 to 2014. Over 350 photographs and detailed text are included.
