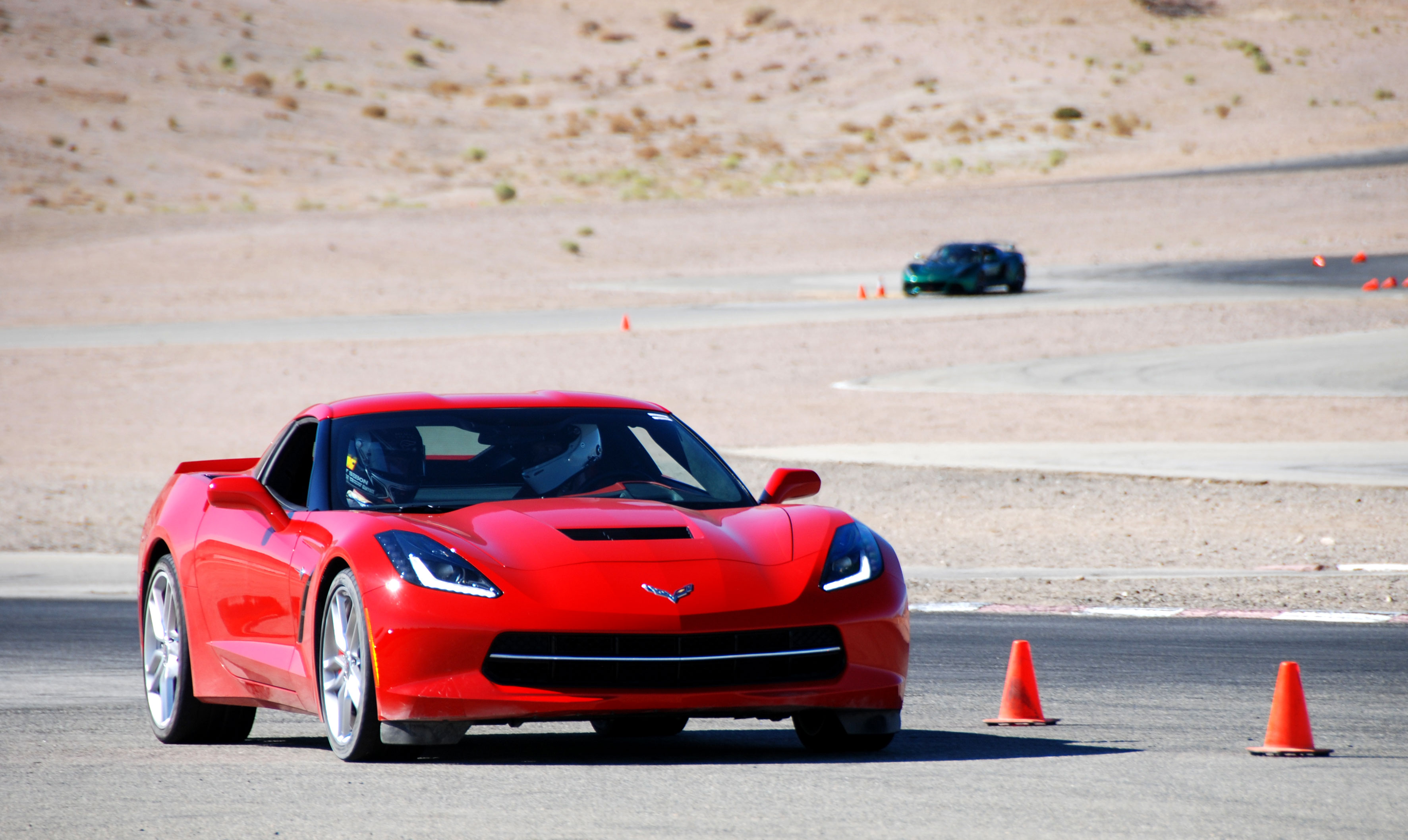

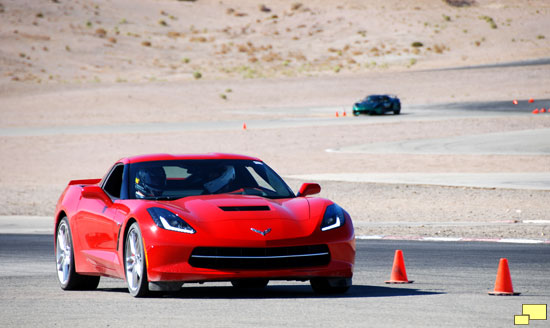

2014 Corvette Willow Springs International Raceway Torch Red
To learn more about the 2014 Corvette, click here.

2014 Corvette Specs

Body Specs

Model Chevrolet Corvette Stingray
Body styles / driveline: two door hatchback coupe with removable roof panel or two door convertible; rear-wheel drive
Construction: Composite and carbon-fiber body panels, hydroformed aluminum frame with aluminum and magnesium structural and chassis components
Manufacturing Plant: Bowling Green, KY
Wheelbase: 106.7 inches (2,710 mm)
Length: 176.9 inches / 4,493 mm
Width: 73.9 inches / 1,877 mm
Height: 48.6 inches / 1,235 mm (Coupe)
48.6 inches / 1,235 mm (Convertible)
Track: 63 inches (1,600) - Front
61.7 inches (1,567) - Rear
Curb Weight: 3,298 lbs (1,499 kg) - Coupe
3,362 lbs (1,529 kg) - Convertible
Weight Distribution: 50% Front, 50% Rear
Seating Capacity: Two
Headroom: 38 inches (962 mm)
Leg Room: 43 inches (1,092 mm)
Shoulder Room: 55 inches (1,397)
Hip Room: 54 inches (1,371)
Interior Volume: 52 cu. ft. (1,475 L)
Cargo Volume: Coupe - 15 cu. ft. (425 L)
Convertible - 10 cu. ft. (283 L)
Fuel Capacity: 18.5 gal (70 L)
Manual Seven Speed Transmission: 1st Gear 2.66:1
2nd Gear 1.78:1
3rd Gear 1.30:1
4th Gear 1.00:1
5th Gear .74:1
6th Gear .50:1
7th Gear .42:1
Reverse Gear 2.90:1
Final Drive Ration 3.42
Manual Seven Speed Transmission with Active Rev Match with Z51: 1st Gear 2.97:1
2nd Gear 2.07:1
3rd Gear 1.43:1
4th Gear 1.00:1
5th Gear .71:1
6th Gear .57:1
7th Gear .48:1
Reverse Gear 2.90:1
Final Drive Ration 3.42
Six Speed Paddle Shift Automatic: 1st Gear 4.03:1
2nd Gear 2.36:1
3rd Gear 1.53:1
4th Gear 1.15:1
5th Gear 0.85:1
6th Gear 0.67:1
Reverse Gear 3.06:1
Final Drive Ration 2.56 (2.73 with Z51)
Standard Fuel Tank Capacity: 18.5 gal (70 L)
Wheels: Front: 18-inch x 8.5-inch
Rear: 19-inch x 10-inch
Front: 19-inch x 8.5-inch (with Z51)
Rear: 20-inch x 10-inch (with Z51)
Tires: Michelin Pilot Super Sport Run Flat
Front: P245/40R18
Rear: P285/35R19
Front: P245/35R19 (with Z51)
Rear: P285/30R20 (with Z51)
EPA Fuel Economy: Manual Transmission (Coupe, Convertible)
17 MPG (City) / 28 MPG (Highway) / 21 MPG (Combined)
Automatic Transmission (Coupe, Convertible)
16 MPG (City) / 27 MPG (Highway) / 20 MPG (Combined)


Engine Specs

Designation: LT1 (Coupe, Convertible)
Type: 90° V8, Pushrod, OHV (overhead Valve)
Displacement - Coupe, Convertible: 376 cu. in. (6,162 cc)
Bore / Stroke - Coupe, Convertible: 4.06 inches x 3.62 inches (103.25 mm 92 mm)
Horsepower: 455 hp @ 6,000 RPM
460 hp @ 6,000 RPM (with performance exhaust)
Torque: 460 lbs. - ft. @ 4,600 (SAE-certified)
465 lbs. - ft. @ 4600 (SAE-certified, with performance exhaust)
Fuel Induction System: Direct Injection
Fuel Requirement - Coupe, Convertible: Premium recommended, not required
Redline: 6,600 RPM
Compression Ratio 11.5:1
Cylinder Head Material: Cast Aluminum
Block Material: Cast Aluminum
Exhaust Manifolds:
Engine Oil Capacity: 7 Quarts, with filter
9.75 Quarts, with Z51
Cooling System Capacity: 11.3 qt (10.7 L)


Performance (GM Numbers)

0 - 60 MPH: 3.8 seconds
1/4 mile: 12 seconds @ 119 MPH


Chassis Specs

Suspension - Front: Short/long arm (SLA) double wishbone, cast aluminum upper and lower control arms, transverse-mounted composite spring, monotube shock absorber
Suspension - Rear: Short/long arm (SLA) double wishbone, cast aluminum upper and lower control arms, transverse-mounted composite spring, monotube shock absorber
Steering: Variable-ratio rack-and-pinion with electric power assist
Steering Ratio: 12.0:1 to 16.4:1
Steering Turns, Lock to Lock: 2.53
Turning Circle, Curb to Curb: 37.7 ft. (11.5 M)
Active Handling Magnetic Selective Ride Control (available with Z51)
Traction Control: StabiliTrak electronic stability control

Brake Specs

Type: Front and rear power-assisted discs with four-piston fixed front and rear calipers (slotted rotors with Z51)
Rotor Diameter: Front: 12.6 inches (320 mm) (13.6 inches (345 mm) with Z51)
Rear: 13.3 / 338
Rotor Thickness: Front: 1.18 inches (30 mm) (including Z51)
Rear: 0.90 inches (23 mm)

2014 Corvette Options

RPO Description Production Price
AE4 Competition Sport Seats, no suede inserts 2,573 (6.71%) $1,995.00
AE4 Competition Sport Seats w/suede inserts 2,573 (6.71%) $2,495.00
BV4 Personalized Name, S/N Plaque 1,827 (4.77%) $200.00
C2M Carbon Fiber Dual Roof Package (includes C2Z and CC3) 969 (2.53%) $2,995.00
C2Q Body Colored Dual Roof Package (includes CFA and CC3) 1,529 (3.99%) $1,995.00
C2Z Roof Panel, Visible Carbon Fiber w/Body Color Surround 3,393 (8.85%) $1,995.00
CC3 Roof Panel, Transparent 6,973 (18.19%) $995.00
D30 Color Combination Override 261 (0.68%) $590.00
DTW Carbon Flash Stinger Stripe 2,356 (6.15%) $500.00
ERI Battery Protection Package 15,773 (41.14%) $100.00
FAY Carbon Fiber Interior Trim 7,495 (19.55%) $995.00
FE4 Magnetic Selective Ride Control 13,386 (34.92%) $1,795.00
G7H Laguna Blue Tintcoat 3,281 (8.56%) $995.00
G7J Lime Rock Green Metallic 1,566 (4.08%) $495.00
G8A Velocity Yellow Tintcoat 2,125 (5.54%) $995.00
GBE Crystal Red Tintcoat 3,020 (7.88%) $995.00
IWE Sueded Microfiber Interior Trim 5,108 (13.32%) $395.00
J6A Black Brake Calipers 9,173 (23.93%) $595.00
J6D Gray Brake Calipers 9,471 (24.70%) $595.00
J6E Yellow Brake Calipers 2,424 (6.32%) $595.00
J6F Red Brake Calipers 16,258 (42.41%) $595.00
MYC Six Speed Automatic Transmission 24,088 (62.83%) $1,250.00
NPP Dual Mode Performance Exhaust 31,173 (81.31%) $1,195.00
PIN Custom Selectable VIN Ending 3 (0.01%) $5,000.00
Q7E Wheels, Chrome Aluminum, 19 inch front, 20 inch rear 7,197 (18.77%) $1,995.00
Q7T Wheels, Black Aluminum, 19 inch front, 20 inch rear 10,143 (26.46%) $495.00
QX3 Wheels, Five Spoke Chrome Aluminum, 18 inch front, 19 inch rear 10,291 (26.84%) $1,995.00
R8C Corvette Museum Delivery 1,231 (3.21%) $990.00
RQ1 Wheels, Five Spoke, Machined Aluminum, 18 inch front, 19 inch rear 1,156 (3.02%) $1,495.00
TTV Spoiler, Rear and Outside Mirrors, Carbon Flash Painted 5,034 (13.13%) $100.00
TTV Carbon Flash Painted Spoiler, Rear and Outside Mirrors 5,034 (13.13%) $100.00
UY4 Navigation System 30,427 (79.37%) $795.00
VK3 Front License Plate Bracket 23,790 (62.05%) $15.00
Z51 Includes (J55) performance brakes, (J6A) Black-painted calipers, slotted brake rotors, (Z52) dry sump oil system, (FE3) Z51 performance suspension, specific shocks, springs and stabilizer bars, (XFJ) P245/35ZR19 front and P285/30ZR20 rear tires, (Q7S) Silver-painted aluminum, 19 inch front and 20 inch rear wheels, performance gear ratios, (G96) Electronic Limited Slip Differential (eLSD), (KNR) rear differential cooler, transmission cooling and an Aero Package 20,611 (53.76%) $2,800.00

Total Production: 38,338
Coupe: 27,065 (70.60%)
Convertible: 11,273 (29.40%)

Notes: Base Corvette Coupe with 6.2L 376 cu. in. 455 hp engine and seven speed manual transmission: $51,995.00.
Base Corvette Coupe with 6.2L 376 cu. in. 455 hp engine and seven speed manual transmission with Z51: $54,775.00.
Base Corvette Convertible with 6.2L 376 cu. in. 455 hp engine and seven speed manual transmission: $56,995.00.
Base Corvette Convertible with 6.2L 376 cu. in. 455 hp engine and seven speed manual transmission with Z51: $59,795.00.
Premier Edition Corvette Coupe with 6.2L 376 cu. in. 455 hp engine and seven speed manual transmission: $75,760.00.
Premier Edition Corvette Convertible with 6.2L 376 cu. in. 455 hp engine and seven speed manual transmission: $77,450.00.

2014 Packages
RPO Description Contains Production Price
3LT

3LT Coupe and Convertible

Includes all 2LT items plus Custom Leather-wrapped interior, Nappa leather seating surfaces, Navigation, Instrument panel in interior color 19,725 (51.45%) $8,005

Colors

Code Exterior Quantity Interior Soft Top
D30 Color Combination Override 261 (0.68%)
G7H Laguna Blue Tintcoat 3,281 (8.56%)
G7J Lime Rock Green Metallic 1,566 (4.08%)
G8A Velocity Yellow Tintcoat 2,125 (5.54%)
G8G Arctic White 6,153 (16.05%)
GAN Blade Silver Metallic 2,088 (5.45%)
GBA Black 5,929 (15.47%)
GBE Crystal Red Tintcoat 3,020 (7.88%)
GBV Cyber Gray Metallic 4,064 (10.60%)
GKZ Torch Red 7,197 (18.77%)
GXH Night Race Blue Metallic 1,827 (4.77%)
