To learn more about the 2025 Corvette, click here.
2025 Corvette Specs

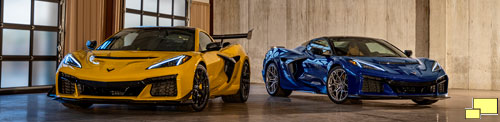

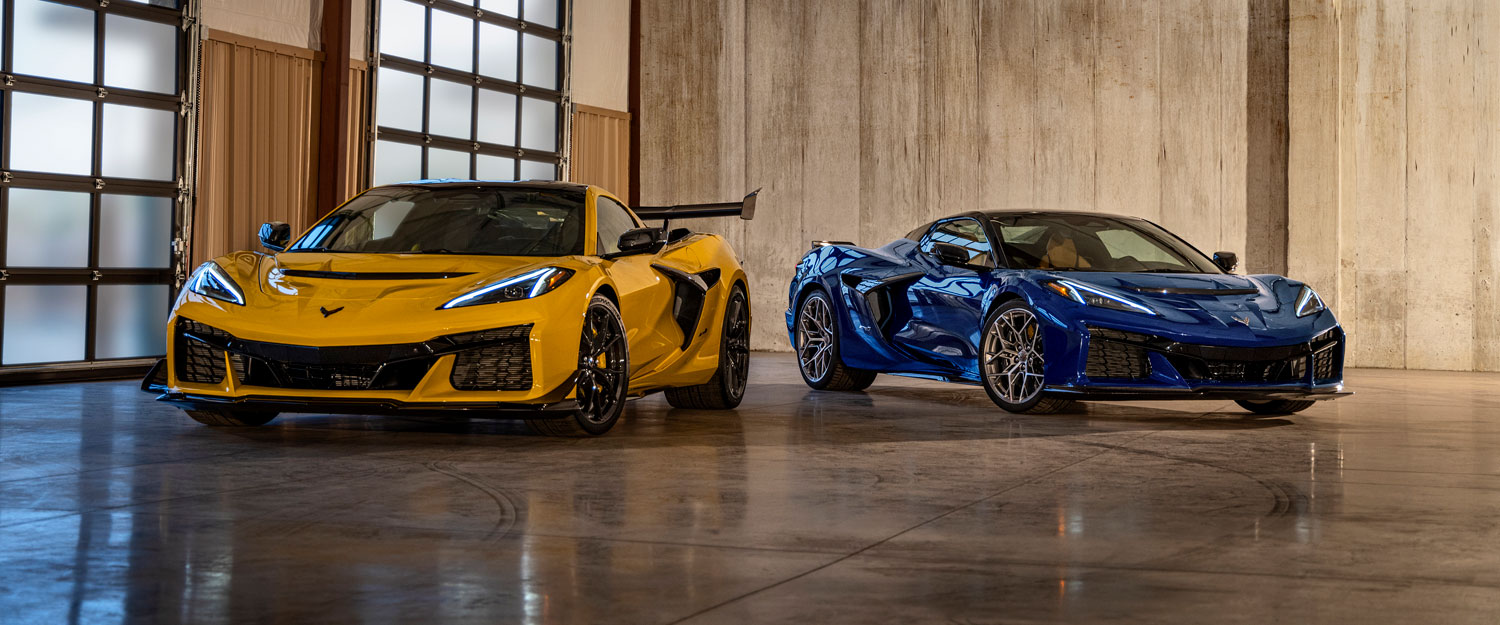

2025 Corvette ZR1 Specs
Body Specs |
|
| Model | Chevrolet Corvette ZR1 |
| Body styles / driveline: | Two Door Coupe, Hardtop Convertible / Mid Engine |
| Manufacturing Plant: | Bowling Green, KY |
| Wheelbase: | 107 inches (2,723 mm) |
| Length: | 185.9 inches (4,722 mm) |
| Width: | 79.7 inches (2,025 mm) |
| Height: | 48.6 inches (1,234 mm) |
| Track: |
Front: 66.3 inches (1,685 mm)
Rear: 66.1 inches (1,678 mm) |
| Dry Weight: |
3,370 lbs (1,665 kg) - Coupe
3,458 lbs (1,705)kg - Convertible |
| Weight Distribution: |
Front: 39.4%
Rear: 60.6% |
| Seating Capacity: | Two |
| Headroom: | 37.9 inches (963 mm) |
| Leg Room: | 42.8 inches (1,087 mm) |
| Shoulder Room: | 54.4 inches (1,382 mm) |
| Hip Room: | 52.0 inches (1,321 mm) |
| Cargo Volume: | 12.6 cu. ft. (356.8 cu. L) |
| Fuel Capacity: | 18.5 gal (70 L) |
| Transmission: | M1L 8-speed dual clutch (DCT) |
| Standard Fuel Tank Capacity: | 18.5 gal (70 L) |
| Wheels: |
Front: 19-inch x 8.5-inch (w/5 x 120mm bolt pattern)
Rear: 20-inch x 11-inch (w/5 x 120mm bolt pattern) |
| Tires: |
Michelin Pilot Sport 4S
Michelin Pilot Sport Cup 2 R with ZTK Front: 245/35ZR19 Rear: 305/30ZR20 |
|
|
| Designation: | LT7 |
| Type: | LT7 Twin-Turbocharged 5.5L DOHC VVT DI |
| Displacement: | 374.92 cu. in. (6.2 L) |
| Bore / Stroke - Coupe, Convertible: | 4.104 inches x 3.150 inches / 104.25 mm x 80 mm |
| Induction System: | Normally Aspirated |
| Horsepower: |
1,064 hp (873 kW) @ 7,000 RPM
|
| Torque: | 828 lbs. - ft. (1,123 Nm)@ 6,000 RPM |
| Fuel Delivery: | PDI (DI - Max pressure: 5,076 psi (35 Mpa / 350 bar) & Port Fuel Injection) |
| Throttle Body: | Twin 65mm single bore (electronic) |
| Redline: | 7,000 RPM |
| Compression Ratio: | 9.8:1 |
| ECU: | GM E99 (32-bit processing) |
| Block Material: | A319 cast aluminum with cast-in iron cylinder liners and four-bolt main bearing caps |
| Oiling System: | Seven-stage dry sump (8-qt. capacity) with oil-spray piston cooling |
| Combustion Chamber Voliume: | 59.92 cc |
| Firing Order | 1-4-3-8-7-6-5-2 |
| Turbo Chargers | Twin 76 mono-scroll ported shroud ball bearing turbos (67mm MAR compressor), E-Waste gates |
| Charge Cooling | Dual engine-mounted water to air charge coolers |
| ECU | GM E68 (32-bit processing) |
| Engine Oil Capacity: | 8 Quarts |
| Oil Type: | Dexos R 5W50 synthetic |
|
|
| Suspension - Front: | Short/long arm (SLA) double wishbone, forged aluminum upper and cast aluminum L-shape lower control arms; monotube shock absorbers (46mm /); Magnetic Selective Ride Control 4.0 available on Z51. Adjustable front lift with memory is available |
| Suspension - Rear: | Short/long arm (SLA) double wishbone, forged aluminum upper and cast aluminum L-shape lower control arms; monotube shock absorbers; Magnetic Selective Ride Control 4.0. Specific calibration with available ZTK package. Adjustable front lift with memory is available |
| Steering: | Short/long arm (SLA) double wishbone, forged aluminum upper and cast aluminum L-shape lower control arms; direct-acting stabilizer bar; monotube shock absorbers; Magnetic Selective Ride Control 4.0. Specific calibration with available ZTK package |
| Steering Ratio: | 15.7:1 |
| Turning Circle: | 38 ft. (11.6 m) |
| Wheel Size |
Front: 20-inch x 10-inch (w/5 x 120mm bolt pattern)
Rear: 21-inch x 13-inch (w/5 x 130mm bolt pattern) |
| Tire Size |
Front: 275/30ZR20
Rear: 345/25ZR21 |
Brake Specs |
|
| Type: |
Front and rear E-boost-assisted discs with Brembo four-piston/two-piece front calipers and four-piston/monobloc rear calipers
With Z51 – Front and rear E-boost-assisted discs with Brembo four-piston monobloc caliper at front and rear |
| Brake Tyoe | Front and rear eBoost-assisted carbon ceramic discs with six-piston/monobloc front calipers and four-piston/monobloc rear calipers |
| Brake Rotor Size: |
Front: 15.7 x 1.5 inches (400 mm x 38 mm)
Rear: 15.4 x 1.3 inches (390 mm x 34 mm) |
2025 Corvette Z06 Specs
Body Specs |
|
| Model | Chevrolet Corvette Z06 |
| Body styles / driveline: | Two Door Coupe, Hardtop Convertible / Mid Engine |
| Manufacturing Plant: | Bowling Green, KY |
| Wheelbase: | 107.2 inches (2,722 mm) |
| Length: |
184.6 inches (4,688 mm)
185.9 inches (4,722 mm) with carbon fiber ground effects |
| Width: | 79.7 inches (2,025 mm) |
| Height: | 48.6 inches (1,235 mm) |
| Track: |
Front: 66.3 inches (1,685 mm)
Rear: 66.1 inches (1,678 mm) |
| Dry Weight: |
3,670 lbs (1,665 kg) - Coupe
3,758 lbs (1,705) - Convertible |
| Seating Capacity: | Two |
| Headroom: | 37.9 inches (963 mm) |
| Leg Room: | 42.8 inches (1,087 mm) |
| Shoulder Room: | 54.4 inches (1,382 mm) |
| Hip Room: | 52.0 inches (1,321 mm) |
| Cargo Volume: | 9.1 cu. ft. (258 cu. L) |
| Fuel Capacity: | 18.5 gal (70 L) |
| Transmission: M1L 8-speed dual clutch (DCT) | |
| Standard Fuel Tank Capacity: | 18.5 gal (70 L) |
| Wheels: |
Front: 20 inch x 10-inch (w/5 x 120mm bolt pattern)
Rear: 21-inch x 13-inch (w/5 x 120mm bolt pattern) |
| Tires: |
Michelin Sport Cup 2 R ZP (with Z07 option)
Front: 275/30ZR20 Rear: 345/25ZR21 |
| EPA Fuel Economy: | N/A |
|
|
| 0 - 60 MPH: | 2.6 seconds (GM, preliminary) |
| 1/4 mile: | 10.6 seconds (GM, preliminary) |
|
|
| Suspension - Front: | Short/long arm (SLA) double wishbone, forged aluminum upper and cast aluminum L-shape lower control arms; monotube shock absorbers (46mm); Magnetic Selective Ride Control 4.0 available. Specific calibration with available Z07 package. Front lift with memory is available. |
| Suspension - Rear: | Short/long arm (SLA) double wishbone, forged aluminum upper and cast aluminum L-shape lower control arms; direct-acting stabilizer bar; monotube shock absorbers (46mm); Magnetic Selective Ride Control 4.0. Specific calibration with available Z07 package |
| Steering: | Variable-ratio rack-and-pinion with electric power assist; includes Active Steer Stops with available Magnetic Ride Control 4.0 |
| Steering Ratio: | 15.7:1 |
| Turning Circle: | N/A |
|
|
| Type: | Front and rear eBoost-assisted discs with Brembo six-piston/two-piece front calipers and four-piston/monobloc rear calipers. |
| Rotor Diameter: |
Front: 14.6 inches (321 mm) x 1.3 inches (34 mm.)
Front: 15.7 inches (398 mm) x 1.5 inches (38 mm.) - With available carbon ceramic Rear: 15.0 inches (339 mm) x 1.3 inches (38 mm.) Rear: 15.4 inches (390 mm) x 1.3 inches (34 mm.) - With available carbon ceramic |
|
|
| Type | LT2 6.2L V-8 VVT with direct injection and Active Fuel Management (cylinder deactivation) and Stop/Start |
| Bore & stroke (in. / mm): | 4.06 x 3.62 / 103.25 x 92 |
| Block Material: | A319-T7 cast aluminum with cast-in iron cylinder liners and nodular main bearing caps |
| Oiling System: | Dry sump-type (7.5-qt. capacity); includes oil-spray piston cooling |
| Oil Type: | Dexos 2 0W40 synthetic |
| Cylinder Head Material: | 319-T7 cast aluminum |
| Combustion Chamber Volume: | 59cc |
| Compression Ratio: | 11.5:1 |
| Valvetrain: | Overhead valve, two valves per cylinder; dual-equal variable valve timing |
| Valve Size (in. / mm): | 2.13 / 54 hollow (intake) & 1.59 / 40.4 sodium filled (exhaust) |
| Fuel Delivery: | Direct injection with Active Fuel Management: Max pressure: 2,900 psi (20 Mpa / 200 bar) |
| Firing Order: | 1-8-7-2-6-5-4-3 (all cylinders); 1-7-6-4 (with deactivation) |
| Throttle Body: | 87mm single bore (electronic) |
| ECU: | GM E99 (32-bit processing) |
| Horsepower (hp / kW): | 495 / 369 @ 6450 rpm |
| Torque (lb.-ft. / Nm): | 470 / 637 @ 5150 rpm |
|
|
| Type: | MLH 8-speed dual clutch (DCT) |
|
|
| Type: | Single motor and gearset |
| Motor: | Permanent magnetic drive motor |
| Power: | 160 hp / 120 kW |
| Torque (lb.-ft. / Nm): | 125 / 165 @ motor |
| Battery Type: | Lithium-ion |
| Energy: | 1.9 kWh |
| Combined Power (with engine): | 655 hp / 481 kW |
|
|
| Front Suspension: | FE5 Short/long arm (SLA) double wishbone, forged aluminum upper and cast aluminum L-shape lower control arms; monotube shock absorbers; Magnetic Selective Ride Control 4.0. Adjustable front lift with memory is available |
| Rear Suspension: | FE5 Short/long arm (SLA) double wishbone, forged aluminum upper and cast aluminum L-shape lower control arms; direct- acting stabilizer bar; monotube shock absorbers; Magnetic Selective Ride Control 4.0 |
| Steering Type: | Variable-ratio rack-and-pinion with electric power assist; includes Active Steer Stops with Magnetic Ride Control 4.0 |
| Steering ratio: | 15.7:1 |
| Turning Circle (ft. / m): | 36.4 / 11.1 |
| Brake Type: | Front and rear eBoost-assisted carbon ceramic discs with Brembo six-piston/monobloc front calipers and four-piston/monobloc rear calipers |
| Brake Rotor Size (in. / mm): |
Front: 15.7 x 1.5 / 398 x 38
Rear: 15.4 x 1.3 / 391 x 34 |
| Wheel Size: |
Front: 20-inch x 10-inch (w/5 x 120mm bolt pattern)
Rear: 21-inch x 13-inch (w/5 x 120mm bolt pattern) |
| Wheel Size: |
Front: 275/30ZR20
Rear: 345/25ZR21 |
|
|
| Wheelbase (in. / mm): | 107.2 / 2722 |
| Overall Length (in. / mm): | 184.6 / 4699 |
| Overall Width (in. / mm): | 79.7 / 2025 |
| Overall Height (in. / mm): | 48.6 / 1235 |
| Track (in. / mm): |
Front: 66.3 / 1685
Rear: 66.1 / 1678 |
|
|
| Headroom (in. / mm): | 37.9 / 962 |
| Legroom (in. / mm): | 42.8 / 1087 |
| Shoulder Room (in. / mm): | 54.4 / 1382 |
| Hip Room (in. / mm): | 52 / 1321 |
|
|
| Dry Weight (lb. / kg): |
3774 / 1712 (coupe)
3856 / 1749 (convertible) |
| Cargo Volume (cu. ft. / L)*: | 12.5 / 355 |
| Cargo and load capacity limited by weight and distribution. | |
| Fuel Tank Capacity: | 18.5 gal. / 70 liters |
|
|
|
