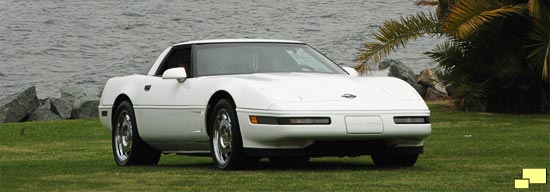

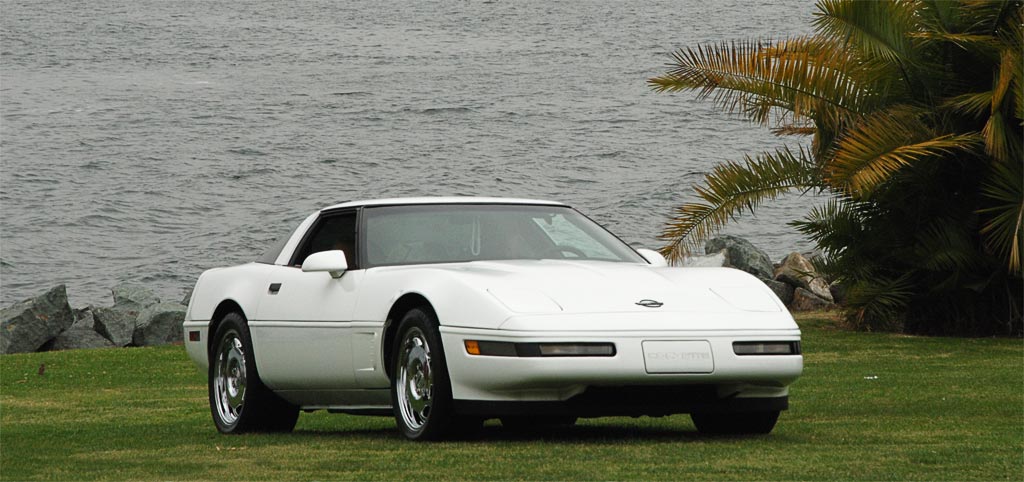

1995 Chevrolet Corvette C4
To learn more about the 1995 Corvette, click here.

1995 Corvette Specs

Body Specs

Wheelbase 96.2 inches
Overhang (Front) 41.6 inches
Overhang (Rear) 40.7 inches
Front Track 57.7 inches
Rear Track 59.1 inches
ZR-1: 60.6 inches
Length 178.5 inches
ZR-1: 178.5 inches
Width 70.7 inches
ZR-1: 73.1 inches
Ground Clearance
Differential to Ground
7.0 inches
Ground Clearance
Front Bumper to Ground
5.1 inches
Ground Clearance
Rear Bumper to Ground
9.2 inches
Minimum Ground Clearance ZR-1, Coupe: 4.2 inches / Convertible: 3.6 inches
(Measured at Catalytic Converter)
Overall Height 46.3 inches (Coupe)
47.3 inches (Convertible)
Rocker Panel to Ground (Front) 6.9 inches
Rocker Panel to Ground (Rear) 6.8 inches
Cargo Capacity 100 lbs. (Coupe, Convertible)
6.6 cubic feet (Convertible)
12.6 cubic feet (Coupe, ZR-1)
Liftover Height: 35.4 Inches (Coupe)
Cowl Height 33.1 inches
Effective Head Room Coupe: 36.5 inches
Convertible: 37.0 inches
Shoulder Room 53.9 inches
Hip Room 49.3 inches
Tire Size Coupe / Convertible
P255/45ZR17 (Front)
P285/40ZR17 (Rear)
(Goodyear Eagle GS-C Steel Belted
Directional, Asymmetrical)
ZR-1
P275/40ZR17 (Front)
P315/35ZR17 (Rear)
Wheel Size Coupe / Convertible
17" x 8.5" (Front)
17" x 9.5" (Rear)
ZR-1
17" x 9.5" (Front)
17" x 11.0" (Rear)
Recommended Tire Inflation Coupe: 35 PSI Front / Rear
Convertible: 30 PSI Front / Rear
Manual Six Speed Transmission Coupe / Convertible / ZR-1
1st Gear 2.64:1
2nd Gear 1.78:1
3rd Gear 1.30:1
4th Gear 1.00:1
5th Gear .74:1
6th Gear .49:1
Reverse Gear 2.42:1
Turbo Hydra-Matic (Automatic) Transmission 1st Gear 3.06:1
2nd Gear 1.63:1
3rd Gear 1.00:1
4th Gear 0.70:1
Reverse Gear 2.29:1
Turbo Hydra-Matic (Automatic)
Transmission Lubricant
Dextron III
10 Pints
Maximum Upshift Speed 1 > 2: 49 MPH
2 > 3: 93 MPH
3 > 4: N/A
Manual Transmission
Lubricant Type
5W-30 Texaco
.987 Pints
Axle Ratio (Manual Transmission)
3.45:1, 3.33:1
(Automatic Transmission)
2.59:1, 3.07:1
(ZR-1)
3.45:1
Standard Fuel Tank Capacity 20 Gallons
EPA Fuel Economy LT1 Engine / Manual Transmission
15 MPG (City) / 23 MPG (Highway)
18 MPG (Combined)
LT1 Engine / Automatic Transmission
15 MPG (City) / 22 MPG (Highway)
18 MPG (Combined)
ZR-1 LT5 Engine
15 MPG (City) / 24 MPG (Highway)
18 MPG (Combined)
Steering Ratio 15.7:1
Steering Turns, Lock to Lock 2.32
Turning Diameters
Outside Front
41.3 feet (Wall to Wall)
40.0 feet (Curb to Curb)
Steering Wheel Diameter 15.0 inches


EPA Fuel Economy

Manual City: 15
Highway: 23
Combined: 18
Automatic City: 15
Highway: 23
Combined: 18
Manual City: 15
Highway: 24
Combined: 18


Weight

Model 1YY07 2-Door Hatchback Coupe Curb Mass
Front: 1,702 lb.
Rear: 1,607 lb.
Total: 3,309 lb.
Shipping**: 3,203 lb.
ETWC*: 3,625 lb.
Model 1YY67 2-Door Convertible Curb Mass
Front: 1,722 lb.
Rear: 1,638 lb.
Total: 3,360 lb.
Shipping**: 3,254 lb.
ETWC*: 3,750 lb.
Model 1YZ07 2-Door Hatchback Coupe (ZR1) Curb Mass
Front: 1,832 lb.
Rear: 1,680 lb.
Total: 3,512 lb.
Shipping**: 3,406 lb.
ETWC*: 3,750 lb.
Reference - SAE J1100 Motor Vehicle Dimensions, Curb Weight Definition.
* Equivalent Test Weight Class - basis for US Environmental Protection Agency emission certifications.

Weight Differentials
Removeble Plastic Roof Panel
(RPO CC3)
-4.4 lb.
(-1.3 lb. Front; -3.1 lb. Rear)
Delco-Bose
Premium Audio System
(RPO UU8)
+8.3 lb.
(+3.0 lb. Front; +5.3 lb. Rear)
Custom Adjustable Seats
(RPO AQ9)
+10.5 lb.
(+3.0 lb. Front; +7.5 lb. Rear)
Automatic Air Conditioning
(RPO C68)
+2.2 lb.
+2.2 lb. Front
Manual Transmission
(RPO ML9)
-43.2 lb.
-23.8 lb. Front; -19.4 lb. Rear)
Leather Seat Trim
(RPO AR9)
+3.5 lb.
(+1.3 lb. Front; +2.2 lb. Rear)
Adjustable Suspension Package
(RPO Z07)
+24.2 lb.
(+18.4 lb. Front; +5.8 lb. Rear)


Engine Specs

Type: 90° V8 (LT5: DOHC 32-Valve)
Bore / Stroke: LT-1: 4.00" / 3.48"
LT-5: 3.90" x 3.66"
Engine Weight: LT1: 576.4 lbs. (Automatic)
635.6 lbs. (Manual)
ZR-1 LT5: 753.6 lbs.
Fuel Requirement: LT1: 87-Octane Rating
ZR-1: 91-Octane Rating
Compression Ratio: LT1: 10.5:1
LT5 (ZR-1): 11.0:1
Cylinder Head Material: Cast Aluminum (LT1, ZR1)
Cylinder Block Material: LT1: Cast Iron
LT5 (ZR-1): Cast Aluminum
Oil Pump Type: Gear
Cooling System Capacity 9.39 Quarts (Manual Transmission)
9.61 Quarts (Automatic Transmission)
14.73 Quarts (ZR-1)
Radiator Cap Relief Pressure LT1, LT5: 15.0 PSI
Battery LT1: 12 volt - 525 Amps Cold Cranking 0° (CCA)
LT5: 12 volt - 690 Amps Cold Cranking 0° (CCA)
54 Amp-hours
Alternator Delco-Remy
50 / 140 Amps (Idle / Max RPM)

Fuel System
Type Sequential Fuel Injection
(LT1 and LT5 Engines)
Fuel Pump Electric - In Fuel Tank
Point of Injection Fuel Injectors at Inlet Ports
Flow Pulse

Horsepower
ZR-1 Engine LT5 (350 cubic inch) 405 hp @ 5,800 RPM;
Torque: 385 lb-ft @ 5,200 RPM
Standard Engine LT1 (350 cubic inch) Manual Transmission: 300 hp @ 5,000 RPM;
Torque: 340 lb-ft @ 4,000 RPM

Ignition System
Spark Plug
(Standard LT1 Engine)
R45LTSP
Make: AC
Spark Plug
(ZR-1 LT5 Engine)
FR2LS
Make: AC
Spark Plug Thread M14 x 1.25
Spark Plug Gap LT1: .050 inch
ZR-1, LT5: .035 inch
Spark Plug Tightening Torque LT1: 18 - 22 lb. - ft.
ZR-1, LT5: 7 - 15 lb. - ft.

Brakes
Type Hydraulic Power Brake Front and Rear Disc
Effective Area 32.4 Square Inches (209 Square cm.) (Front)
18.4 Square Inches (119 Square cm.) (Rear)
Gross Lining Area 33.0 Square Inches (213 Square cm.) (Front)
18.4 Square Inches (119 Square cm.) (Rear)
Swept Area 111.9 Square Inches (722 Square cm.) (Front)
91.3 Square Inches (589 Square cm.) (Rear)
Rotor Outer Working Diameter: (302 mm.) 9.9 inches
Inner Working Diameter:
7.3 Inches (222 mm.) (Front),
7.6 Inches (232 mm.) (Rear)
Type and Material: Vented, Gray Iron Vented (Front)
HCE Iron Vented (Rear)

1995 Corvette Options

RPO Description Production Price
24S Removable Roof Panel, blue tint (coupe) 4,688 (22.60%) $650.00
64S Removable Roof Panel, bronze tint (coupe) 2,871 (13.84%) $650.00
AG1 Power Driver Seat 19,012 (91.66%) $305.00
AG2 Power Passenger Seat 15,323 (73.87%) $305.00
AQ9 Sport Seats 7,908 (38.13%) $625.00
C2L Dual Removable Roof Panels (coupe) 2,979 (14.36%) $950.00
CC2 Auxiliary Hardtop (convertible) 459 (2.21%) $1,995.00
FX3 Selective Ride and Handling, electronic 3,421 (16.49%) $1,695.00
G92 Performance Axle Ratio 10,056 (48.48%) $50.00
MN6 6-Speed Manual Transmission 4,784 (23.06%) n/a
N84 Spare Tire Delete 418 (2.02%) $-100.00
NG1 New York Emission Requirements 268 (1.29%) $100.00
PEG1 Preferred Equipment Group 1 Included electronic A/C, Delco-Bose Stereo w/cassette and RPO AC3 n/a $1,333.00
U1F Stereo System with CD, Delco-Bose 15,528 (74.86%) $396.00
UJ6 Low Tire Pressure Warning Indicator 5,300 (25.55%) $325.00
WY5 Tires, Extended Mobility 3,783 (18.24%) $70.00
YF5 California Emission Requirements 2,026 (9.77%) $100.00
Z07 Adjustable Suspension Package (coupe) 753 (3.63%) $2,045.00
Z4Z Indy 500 Pace Car Replica (convertible) 527 (2.54%) $2,816.00
ZR1 Special Performance Package (coupe) 448 (2.16%) $31,258.00

Total Production: 20,742
Coupe: 15,771 (76.03%)
Convertible: 4,971 (23.97%)

Notes: Base Corvette Coupe with 350 cu. in. 300 hp engine and four speed automatic transmission: $36,785.00.
Base Corvette Convertible with 350 cu. in. 300 hp engine and four speed automatic transmission: $43,665.00.

Colors

Code Exterior Quantity Interior Soft Top
05 Dark Purple Metallic 1,049 (5.06%) Black / Light Beige / Light Gray Beige / Black / White
05/10 Dark Purple / White 527 (2.54%) Black / Pace Car Replica White
10 Arctic White 3,381 (16.30%) Black / Light Beige / Light Gray / Red Beige / Black / White
28 Admiral Blue 1,006 (4.85%) Black / Light Beige / Light Gray Beige / Black / White
41 Black 3,959 (19.09%) Black / Light Beige / Light Gray / Red Beige / Black / White
43 Bright Aqua Metallic 909 (4.38%) Black / Light Beige / Light Gray Beige / Black / White
45 Polo Green Metallic 2,940 (14.17%) Black / Light Beige Beige / Black
53 Competition Yellow 1,003 (4.84%) Black / Light Beige / Light Gray Beige / Black / White
70 Torch Red 4,531 (21.84%) Black / Light Beige / Light Gray / Red Beige / Black / White
75 Dark Red Metallic 1,437 (6.93%) Black / Light Beige / Light Gray Beige / Black / White
